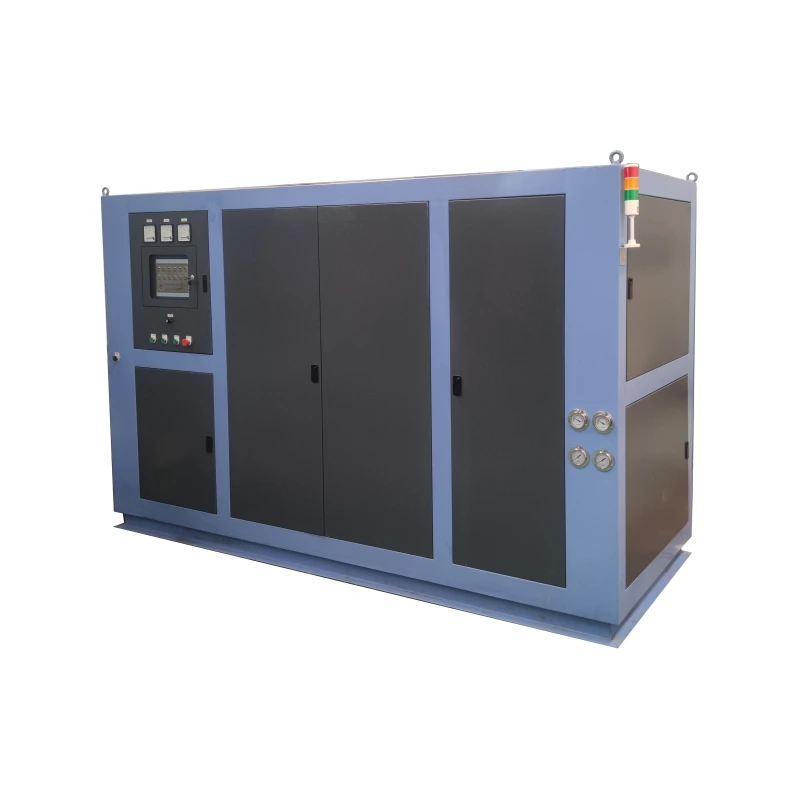

Jar Hing medium frequency induction melting furnace 500kg KGYSC-500/2 convenient for maintenance
● Rated power: 525kw;
● Frequency 1000Hz;
● Melting rate ≤ 45min/ furnace;
● The maximum temperature of molten steel is 1750 ℃;
● The rated capacity of furnace body is 500kg, and the quantity of hydraulic furnace body is 1;
● Furnace output voltage 1800V;
● The new generation control board is adopted to improve the protection performance of the equipment and reduce the equipment failure rate; At the same time, there is no need for resistance wire and starting thyristor, which reduces the failure rate of the equipment again;
● The power cabinet has plc+ touch screen;
Supply Ability & Additional Information
Transportation: Ocean
Port: Qingdao
Payment Type: T/T
1. rated power: 525kw;
2. frequency 1000Hz;
3. melting rate ≤ 45min/ furnace;
4. the maximum temperature of molten steel is 1750 ℃;
5. the rated capacity of furnace body is 500kg, and the quantity of hydraulic furnace body is 1;
6. furnace output voltage 1800V;
7. the new generation control board is adopted to improve the protection performance of the equipment and reduce the equipment failure rate; At the same time, there is no need for resistance wire and starting thyristor, which reduces the failure rate of the equipment again;
8. the power cabinet has plc+ touch screen;
9. ordinary hydraulic furnace body structure, convenient for maintenance;
10. adopt series inverter mode; The power consumption of 1 ton of molten steel is about 600 degrees, which is about 240 degrees less than that of ordinary medium frequency furnace; Imported Fuji switch, Grundfos water pump, British Sima inverter diode.
