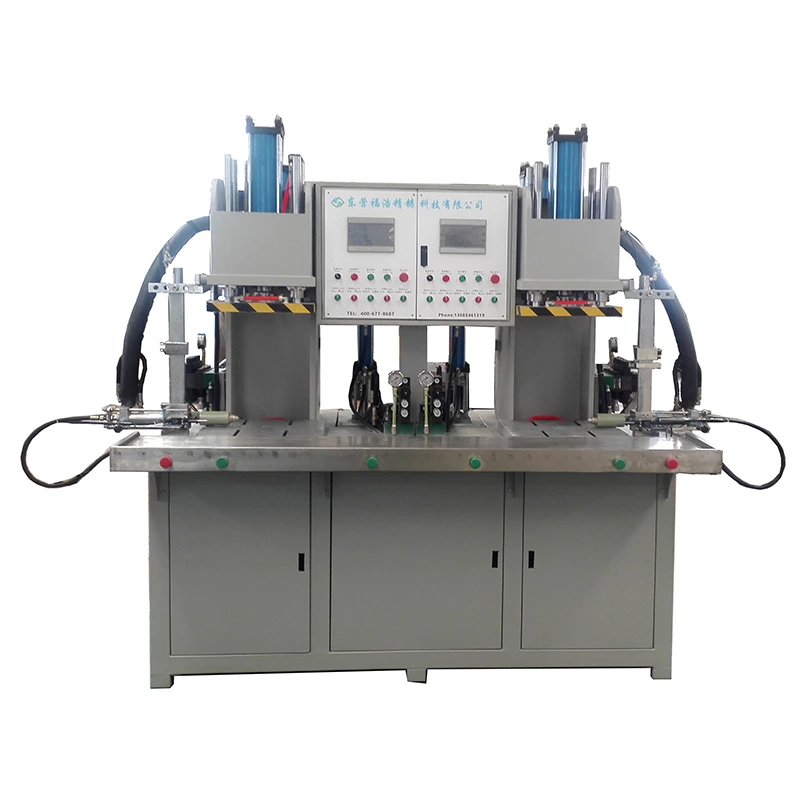

Jar Hing wax injection machine double-station c type 16T 1
Jar Hing wax injection machine double-station c type 16T 2
Jar Hing wax injection machine double-station c type 16T 1
Jar Hing wax injection machine double-station c type 16T 2

Jar Hing wax injection machine double-station c type 16T

● The maximum clamping force is 16t;

● The maximum mold opening height is 500mm;

● The minimum clamping height is 70mm;

● Pressing plate size 430 × 380mm;

● Base plate size 500 × 500mm;

● Auxiliary workbench 2250 × 375mm;

● Expansion range of nozzle: 0 ~ 200mm;

● The lifting range of nozzle is 0 ~ 200mm;

● The maximum usable volume of wax storage cylinder is 120L;

● The maximum single wax injection volume is 5L;



Supply Ability & Additional Information

Transportation: Ocean

Port: Qingdao

Payment Type: T/T

    oops...!

    no product data.

    Go to homepage
    Product parameters
    Product characteristics

    Model No.

    MMY16-2KM

    Place Of Origin

    China

    Old And New

    New

    Video Factory Inspection

    Provided

    Mechanical Test Report

    Not Available

    Marketing Type

    Ordinary Product

    Core Component Warranty Period

    1 Year

    Core Components

    Plc, Motor, Pump

    Warranty Period

    1 Year

    Core Selling Point

    High Productivity

    Out-of-warranty Service

    Video Technical Support, Online Support, Spare Parts,

    Field Maintenance And Repair Service

    Where To Provide Local Services

    (in Which Countries Are There Overseas Service Outlets)

    None

    Showroom Location

    (in Which Countries Are There Sample Rooms Overseas)

    None

    Applicable Industry

    Other

    1.  the maximum clamping force is 16t;

    2.  the maximum mold opening height is 500mm;

    3.  the minimum clamping height is 70mm;

    4.  pressing plate size 430 × 380mm;

    5.  base plate size 500 × 500mm;

    6.  auxiliary workbench 2250 × 375mm;

    7.  expansion range of nozzle: 0 ~ 200mm;

    8.  the lifting range of nozzle is 0 ~ 200mm;

    9.  the maximum usable volume of wax storage cylinder is 120L;

    10.  the maximum single wax injection volume is 5L;

    11.  wax injection pressure: 0.5 ~ 10MPa;

    12.  all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;

    13.  French Schneider shall be adopted for contactors and relays;

    14.  the touch screen is made of Taiwan vinylon;

    15.  temperature control mode touch screen +plc temperature control module;

    16.  the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.

    17.  the hydraulic oil tank is made of stainless steel;  The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;

    18.  four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection;  It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production;  Workbench auxiliary water cooling.
