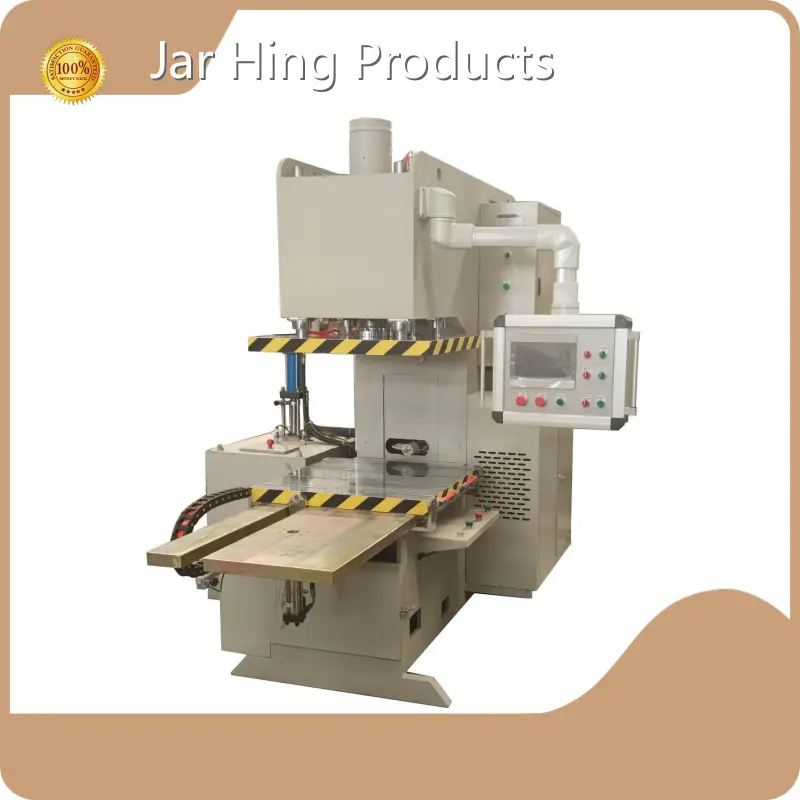

Auto Wax Injection Machine Wholesale - Jar Hing
| Model No. | MMY20-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 590mm;
3. the minimum clamping height is 90mm;
4. lower workbench size 800 × 800mm;
5. upper pressing plate size 600 × 600mm;
6. the moving stroke of the lower workbench is 800mm;
7. expansion range of nozzle: 0 ~ 300mm;
8. the lifting range of nozzle is 0 ~ 300mm;
9. the maximum usable volume of wax storage cylinder is 120L;
10. the maximum wax injection per shot is 7L;
11. wax injection pressure: 0.5 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. fast running oil cylinder shall be adopted for die cylinder;
17. equipped with 0.5T mold lifting device;
18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;
20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;
21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.
22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Advantages
· auto wax injection machine is produced by high-quality material exported from abroad.
· We closely monitor and control the quality in every stage to extend the lifespan of the product.
· This product is in great demand and we have on hand many enquiries from other countries.
Company Features
· Founded as a manufacturing company, Jar Hing Products Co., Ltd has evolved and grown dramatically in recent years with strong capability in manufacturing auto wax injection machine.
· In the past years, we have been concentrating on international auto wax injection machine market expansion. Until now, we have established good relationships with many clients in the USA, South Africa, Australia, the UK, etc.
· We spare no efforts to minimize the negative environmental impact in every aspect of our business. We will pilot a production approach that focuses on eliminating waste, reducing and controlling pollution.
Application of the Product
The auto wax injection machine produced by Jar Hing Products is widely used in many industry sectors.
Jar Hing Products is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
