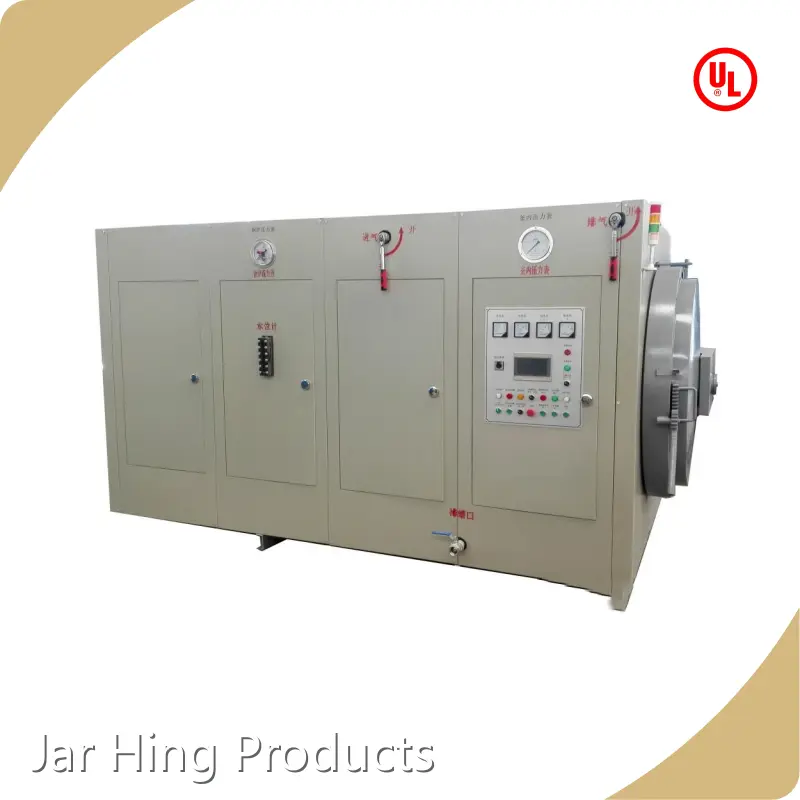

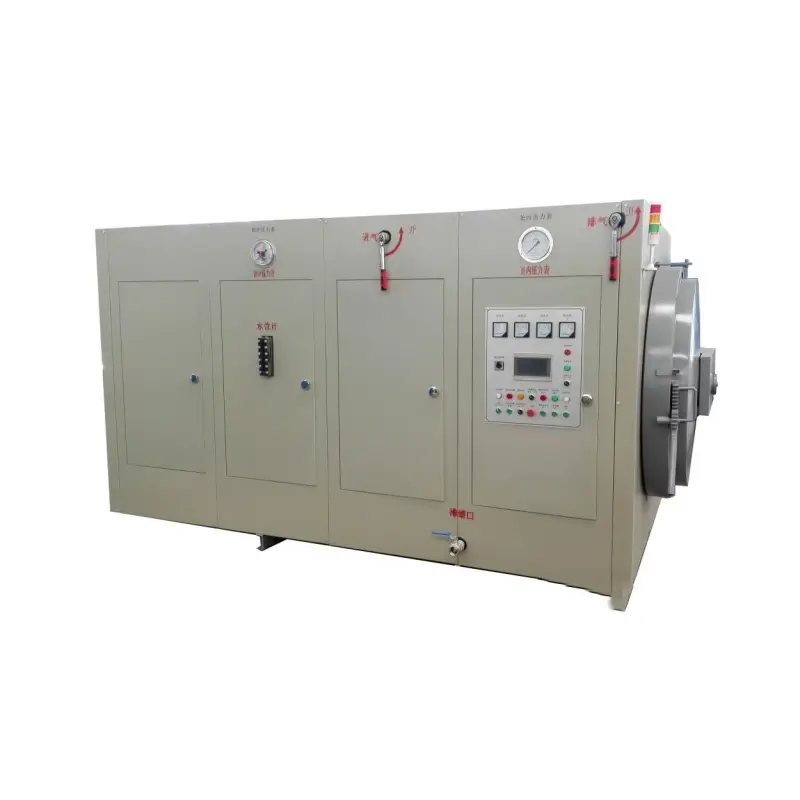

Dewaxing Machine by Jar Hing-6
Product details of the dewaxing machine
Quick Detail
dewaxing machine is available in a wide range of types, specifications, and functions. It is stable in performance, good in quality and favorable in price. This highly cost-effective product can meet the diverse needs of customers. Thanks to the talented team and the advanced technology, Jar Hing dewaxing machine comes in various innovative design styles. The product abides by international quality standards. dewaxing machine is of stable performance and reliable quality, which can be used to weld materials such as automotive spare parts, metal spare parts, construction materials, and stainless steel products. The product has won many customers by the virtue of huge economic benefits.
Product Information
Jar Hing Products produces dewaxing machine according to national standards, and the products are of good quality. The specific details are as follows.
| Model No. | MBZTL120 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
