Dewaxing Machine - - Jar Hing

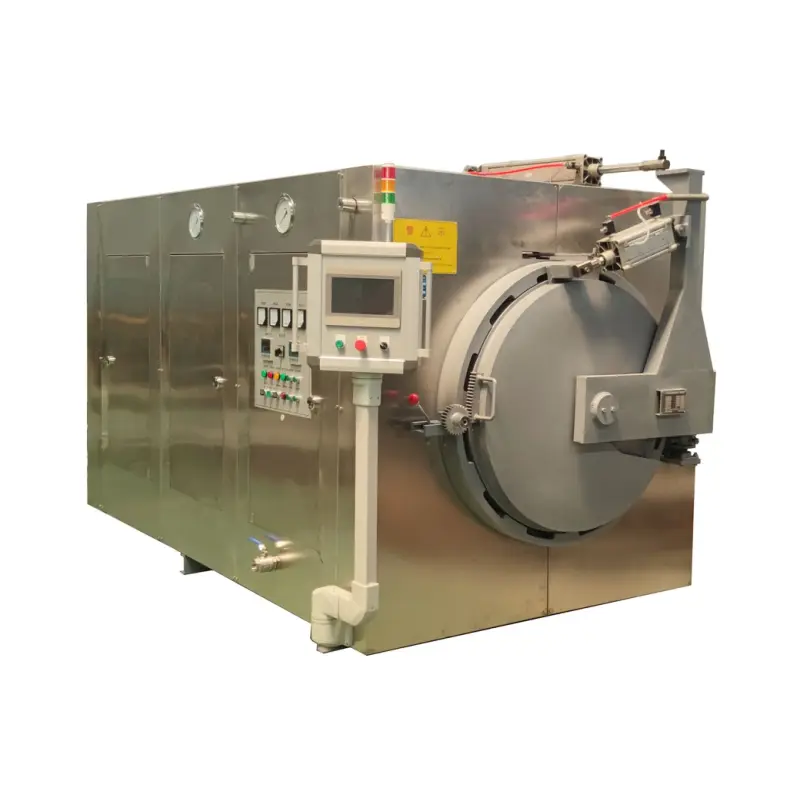

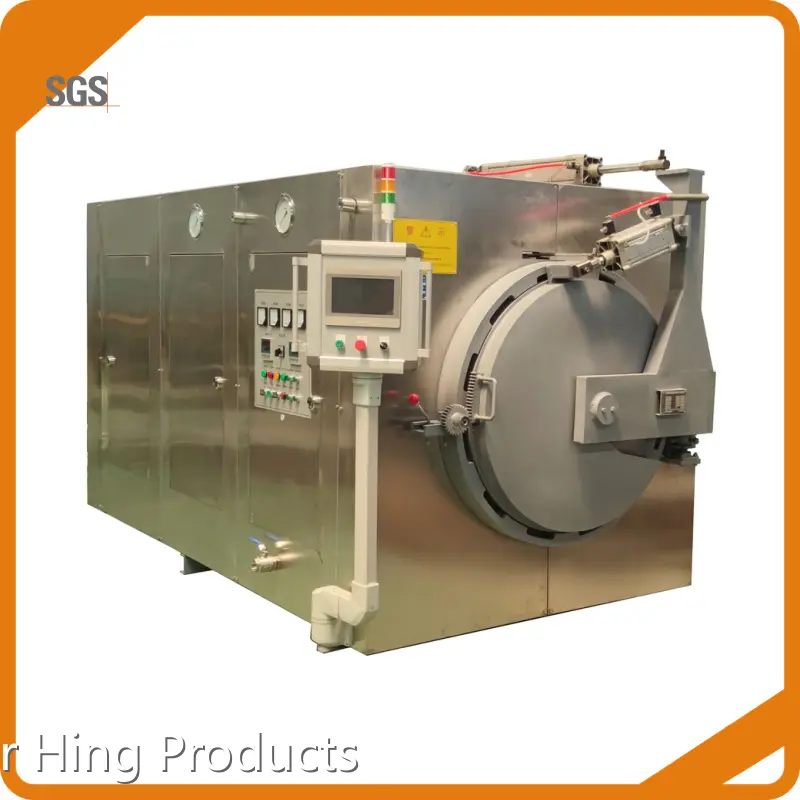

Product details of the dewaxing machine
Product Description
Jar Hing dewaxing machine is manufactured using the most advanced technology and most sophisticated equipment. Its quality and performance have the highest priority over sales objective and expense issues. Jar Hing Products Co., Ltd's inner departments collaborate efficiently, which ensures all production projects can be finished timely and smoothly.
| Model No. | MQZTL120 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. boiler steel plate inner tank, inner diameter of deaerator Ф 1200× 1400mm;
2. service pressure: 0-0.8Mpa;
3. power: 183kw;
4. when the dewaxing chamber is at 0.6MPa, the pressure balance time is less than 5S;
5. the sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding;
6. the touch screen +plc intelligent control system is adopted, and the kettle door is automatically closed, locked, automatically air inlet, exhaust, wax discharge, locked and automatically opened; Greatly reduce energy consumption and customer investment;
7. Schneider, PLC, Mitsubishi, and Yadeke are used as contactors and relays;
8. pressure and temperature dual protection control, mechanical safety interlock and interlock of charging valve and kettle door;
9. thick wall heating pipe with better quality is adopted to increase its service life;
10. the working parameters are displayed and set on the touch screen, and the process parameters can be stored;
11. overall dimension: 3900 × two thousand one hundred and sixty × 2450mm;
1. boiler steel plate inner tank, inner diameter of deaerator Ф 1200× 1400mm;
2. service pressure: 0-0.8Mpa;
3. power: 183kw;
4. when the dewaxing chamber is at 0.6MPa, the pressure balance time is less than 5S;
5. the sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding;
6. the touch screen +plc intelligent control system is adopted, and the kettle door is automatically closed, locked, automatically air inlet, exhaust, wax discharge, locked and automatically opened; Greatly reduce energy consumption and customer investment;
7. Schneider, PLC, Mitsubishi, and Yadeke are used as contactors and relays;
8. pressure and temperature dual protection control, mechanical safety interlock and interlock of charging valve and kettle door;
9. thick wall heating pipe with better quality is adopted to increase its service life;
10. the working parameters are displayed and set on the touch screen, and the process parameters can be stored;
11. overall dimension: 3900 × two thousand one hundred and sixty × 2450mm;
Company Feature
• Jar Hing Products was founded in Over the years, we strive to learn foreign and domestic advanced manufacturing experience and continuously improve production technology. We improve the corporate governance system and pursue excellence in development. We establish a good corporate image in the industry.
• Jar Hing Products's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• Jar Hing Products attaches great importance to talent cultivation. Currently, we have an excellent and efficient staff team who effectively guarantees sustainable development.
• Jar Hing Products provides customers with comprehensive and thoughtful value-added services. We make sure that customers' investment is optimal and sustainable based on the perfect product and after-sales service system. All this contributes to the mutual benefit.
• In recent years, Jar Hing Products has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
Dear customer, if you have any questions about Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment, please call us. We will sincerely reply with an answer to your question and provide you with professional services.
