Dewaxing Machine Wholesale - Jar Hing-1

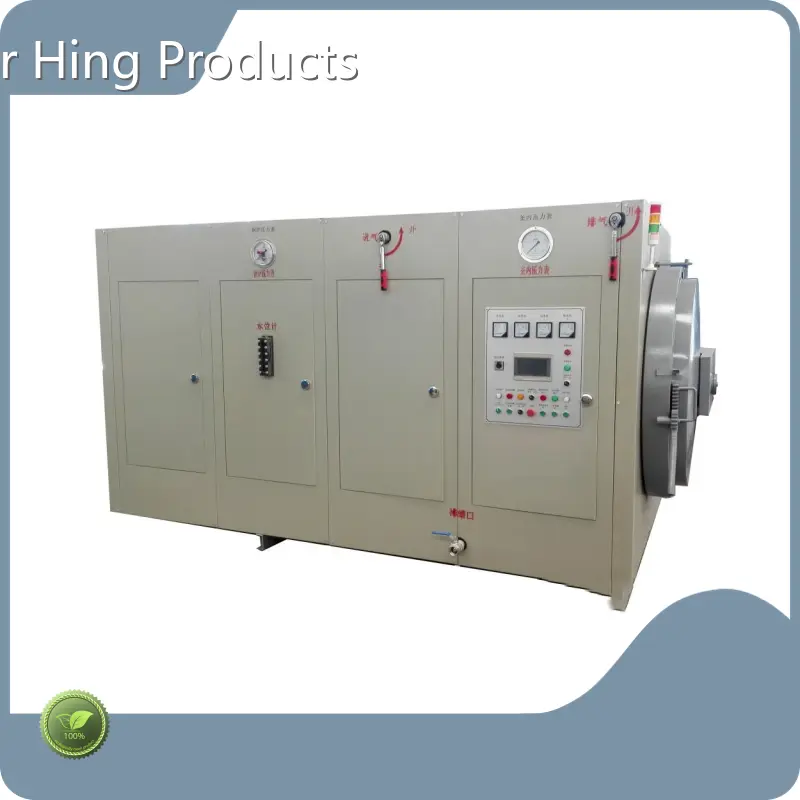

Product details of the dewaxing machine
Product Overview
Advanced production technology is adopted to the production of Jar Hing Products's mechanical equipment. So our product is provided with features of self-adaptation, maintenance-free, self-testing and so forth. Moreover, the mechanical equipment is of easy operation and strong practicability. Jar Hing dewaxing machine is delicately manufactured by combining the best materials and the lean production method. Our professional quality check team conducts strict quality inspections for the sake of high quality. Perfect quality control systems insure high quality and reliability of dewaxing machine products.
Product Description
With a focus on details, Jar Hing Products strives to create high-quality dewaxing machine.
| Model No. | MBZTL120 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
Company Introduction
Jar Hing Products Co., Ltd now is a dewaxing machine manufacturer with a reputation at home and abroad. In order to stay at the forefront of the industry, Jar Hing has been learning high technology at home and abroad to produce high quality products. We have a clear operational goal. We will do business and conduct behavior in an economically, environmentally and socially responsible manner, while at the same time, we will continue to contribute value to the society.
Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment have high quality and favorable price. We provide bulk purchase. If you are interested in our product, please leave your contact information. We will contact you as soon as possible.
