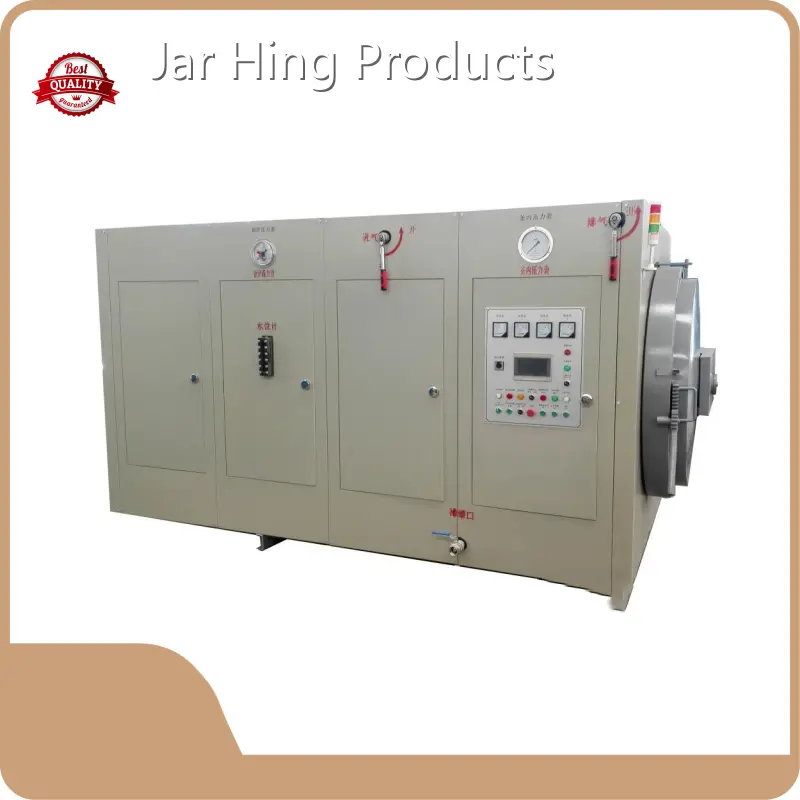

Dewaxing Plant by Jar Hing
Product details of the dewaxing plant
Quick Overview
Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation. The appearance of Jar Hing dewaxing plant is greatly enhanced by the innovative design. Being tested by the advanced testing equipment, the product quality is assured. The tenet of people-oriented will help Jar Hing better serve customers.
Product Information
Compared with similar products, the dewaxing plant produced by Jar Hing Products has the following advantages.
| Model No. | MBZTL120 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
1.Inner dimension of tank: φ 1200 × 1400mm
2.Design steam pressure, 0.85mpa.:
3.Steam working pressure, 0.8mpa.:
4.Time from equipment startup to pressure in kettle reaches 0.65Mpa: <8 s
5.Evaporation capacity: 250kg/ H
6.Operating temperature in the tank 178 ℃
7.Pressure maintaining time of workpiece in kettle (range): 0-99 minutes
8.Heating time from cold state to operating state: 90 minutes
9.Pressure release time (range): 6-60 seconds
10.Overall dimension of equipment: 3900 × two thousand and sixty × 2400mm
11.Total power: 183kw
12.Equipment weight: 4700kg
13.The sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; Automatic air inlet, exhaust, drainage and wax discharge; Manually open and close the kettle door.
