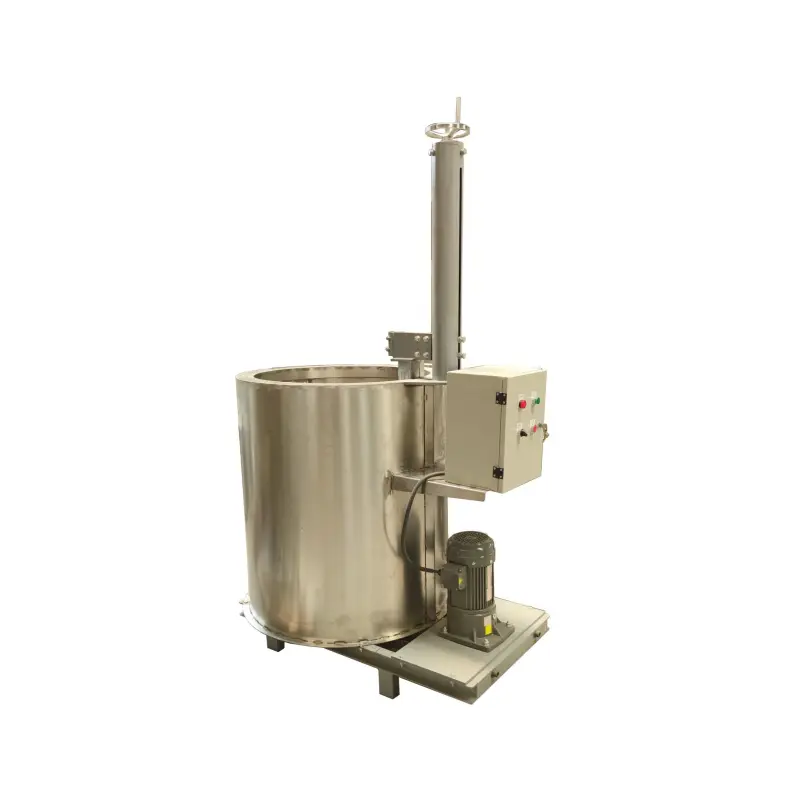

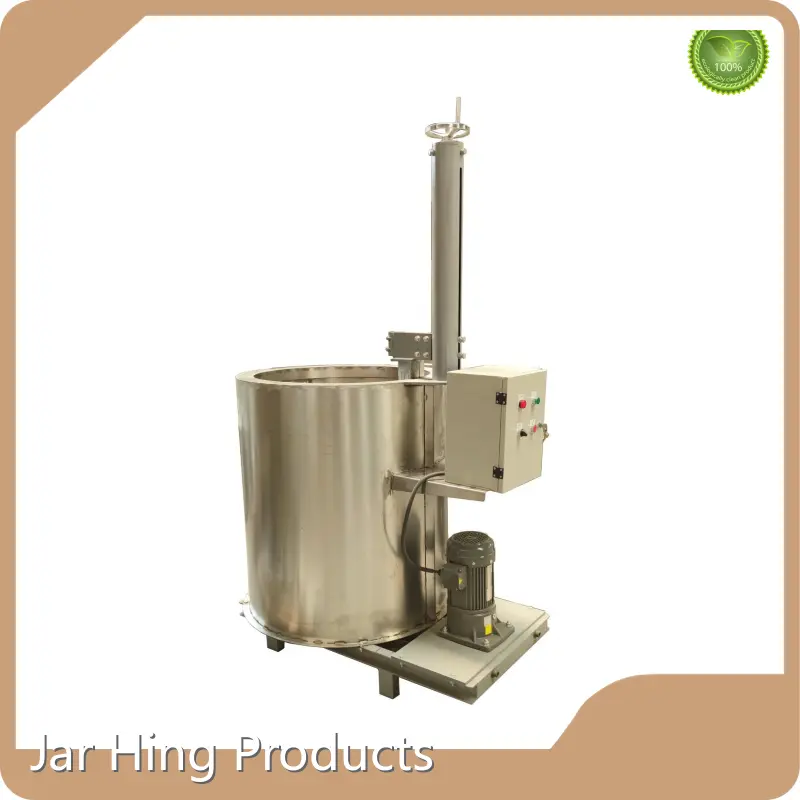

Drum Shell Mold Machine by Jar Hing-2
Product details of the drum shell mold machine
Product Overview
Compact in structure, stable in performance, reliable in quality, high in cost performance and wide in application, Jar Hing Products's mechanical equipment greatly improves production efficiency. The designs and colors of Jar Hing drum shell mold machine are adaptable with personality and style. Its quality is strictly checked by quality inspection department from the raw material to the shipment process. Jar Hing Products Co., Ltd has formed perfect quality assurance system and production guarantee system.
Product Information
Jar Hing Products's drum shell mold machine has been further improved based on advanced technology, as reflected in the following aspects.
| Model No. | MZJ80 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. pulp barrel diameter 770mm;
2. barrel depth 620;
3. the inner slurry barrel is made of 3mm thick stainless steel with a volume of 250L;
4. rotating speed: 23.3r/min;
5. the lifting range of the paddle is adjustable from 0 to 380mm;
6. the new drive structure is adopted to reduce the power of the equipment, which is half of the power consumption of the old dip machine, and the power is 0.75KW;
7. the pulp board can be lifted and lowered; The reducer adopts an integrated gear reducer, which has low noise and is convenient for maintenance.
8. the pressure bearing of the pulp barrel is added to bear the gravity of the pulp and the pulp barrel, so that the output shaft of the reducer only bears the radial load, with reasonable stress, low noise and long service life;
1. pulp barrel diameter 770mm;
2. barrel depth 620;
3. the inner slurry barrel is made of 3mm thick stainless steel with a volume of 250L;
4. rotating speed: 23.3r/min;
5. the lifting range of the paddle is adjustable from 0 to 380mm;
6. the new drive structure is adopted to reduce the power of the equipment, which is half of the power consumption of the old dip machine, and the power is 0.75KW;
7. the pulp board can be lifted and lowered; The reducer adopts an integrated gear reducer, which has low noise and is convenient for maintenance.
8. the pressure bearing of the pulp barrel is added to bear the gravity of the pulp and the pulp barrel, so that the output shaft of the reducer only bears the radial load, with reasonable stress, low noise and long service life;
