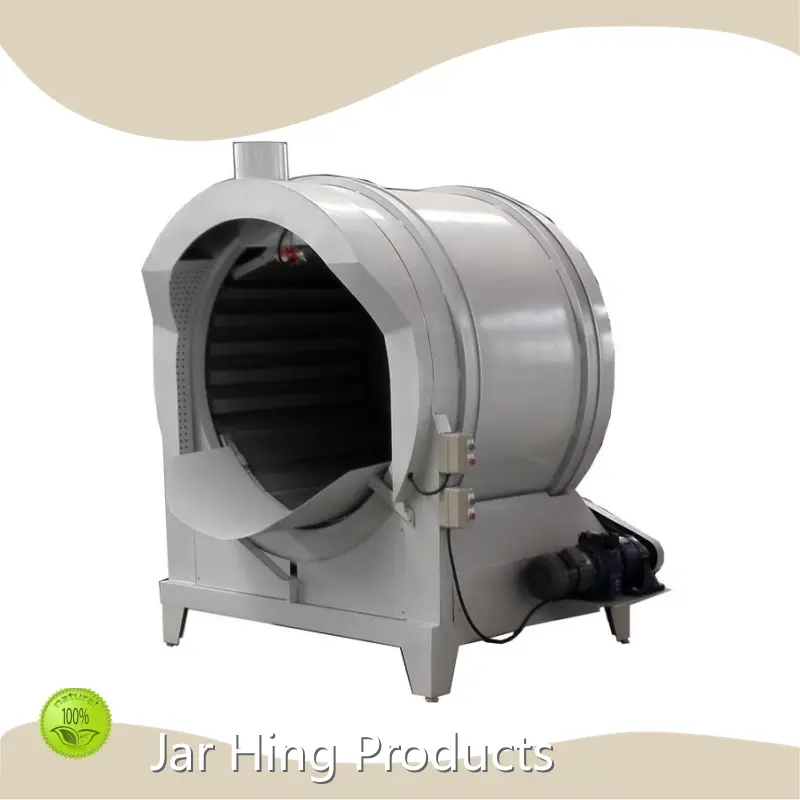

Product details of the drum shell mold machine


Product Introduction

Jar Hing drum shell mold machine is manufactured in an advanced facility that is manned with highly qualified professionals, ensuring smooth production. The product is of top quality and has reliable performance at competitive prices. Jar Hing Products Co., Ltd will strictly inspect product package to ensure drum shell mold machine will be totally safe during transportation.

Product parameters
Product description
Product characteristics
Model No. MLS-1800
Place Of Origin China
Old And New New
Video Factory Inspection Provided
Mechanical Test Report Not Available
Marketing Type Ordinary Product
Core Component Warranty Period 1 Year
Core Components Plc, Motor, Pump
Warranty Period 1 Year
Core Selling Point High Productivity
Out-of-warranty Service Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services

(in Which Countries Are There Overseas Service Outlets)

None

Showroom Location

(in Which Countries Are There Sample Rooms Overseas)

None
Applicable Industry Other

1. speed: 1.77-8.85r/min, stepless speed governor;
2. sand spraying power: 1.5kw;
3. vibration power: 0.1kw;
4. sand pouring space size: Φ 1300*1000mm;
5. barrel size: Φ 1800*1200mm;
6. add sand from the rear;
7. the processing rail belt is adopted, which has the advantages of stable operation, low noise and few faults;
8. the sand spraying is uniform, the sand spraying amount is convenient and adjustable, the operation is simple, and the sand spraying area is large, which is suitable for large castings.

Item Unit MYY20-1KM MYY50-1KM
Maximum clamping force T 20 50
Maximum opening height mm 550 550
Minimum mode height mm 100 100
Upper plate size mm 600(L)×600(W) 600(W)×600(W)
Lower worktable moving stroke mm 700 700
Telescopic range of ejection nozzle mm 0~300 0~300
Lifting range of ejection nozzle mm 0~300 0~300
Ground height of work table mm 895 895
Rated hanging weight of cantilever crane Kg 500 500
Maximum use volume of wax storage cylinder L 120 120
Single maximum paraffin amount L 7 12
Wax injection pressure MPa 1.0~10 1.0~10
Pressure holding time S 0~9999 0~9999
Wax injection time S 0~9999 0~9999
Installed power KW 10 10
Temperature control mode   Touch screen +PLC temperature control module Touch screen +PLC temperature control module
Temperature control of wax storage bucket 75~90 75~90
Isothermal temperature control 50~65 50~65
Equipment dimensions mm 2520*1760*3000 2520*1760*3000
Self weight of equipment T 3.0 3.9

1. speed: 1.77-8.85r/min, stepless speed governor;
2. sand spraying power: 1.5kw;
3. vibration power: 0.1kw;
4. sand pouring space size: Φ 1300*1000mm;
5. barrel size: Φ 1800*1200mm;
6. add sand from the rear;
7. the processing rail belt is adopted, which has the advantages of stable operation, low noise and few faults;
8. the sand spraying is uniform, the sand spraying amount is convenient and adjustable, the operation is simple, and the sand spraying area is large, which is suitable for large castings.


Company Advantage

• According to the management system of modern enterprise, our company has established an elite team. They have rich industry experience in production, processing and sales.
• Our company's products are not just popular with the domestic market. They are exported to Southeast Asia, Europe, Africa and other countries and regions.
• Jar Hing Products has built a sound service system to provide one-stop services such as product consultation, professional debugging, skills training, and after-sales service.
• Jar Hing Products was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.
• Strong in production capacity and perfect in operation mechanism, our company is able to provide customers with quality products and custom services.
