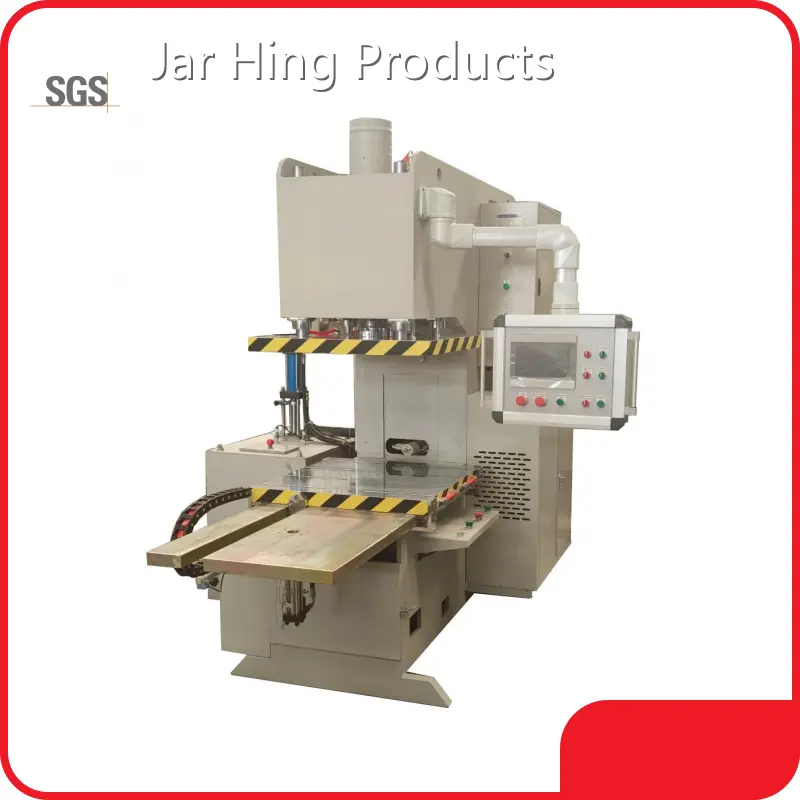

Investment Casting Equipment by Jar Hing-8
| Model No. | MMY20-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 590mm;
3. the minimum clamping height is 90mm;
4. lower workbench size 800 × 800mm;
5. upper pressing plate size 600 × 600mm;
6. the moving stroke of the lower workbench is 800mm;
7. expansion range of nozzle: 0 ~ 300mm;
8. the lifting range of nozzle is 0 ~ 300mm;
9. the maximum usable volume of wax storage cylinder is 120L;
10. the maximum wax injection per shot is 7L;
11. wax injection pressure: 0.5 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. fast running oil cylinder shall be adopted for die cylinder;
17. equipped with 0.5T mold lifting device;
18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;
20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;
21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.
22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Advantages
· Our Jar Hing investment casting equipment is fabricated using premium material.
· The product has some advantages that other products are incomparable with, such as long service life and stable performance.
· The firm quality awareness is also factor which contributes the high quality of investment casting equipment.
Company Features
· Jar Hing Products Co., Ltd has always been known for manufacturing investment casting equipment. We have a long history of providing the highest value to our customers.
· We have our own factory. Covering a large area and being equipped with advanced production lines and high-end machines, it meets needs from the rapidly developing markets of investment casting equipment.
· By improving the quality of service, Jar Hing brand will pay more attention to its culture establishment. Get more info!
Application of the Product
investment casting equipment has a wide range of applications.
We can provide customers with the most professional and effective solutions based on market research results and customer needs.
