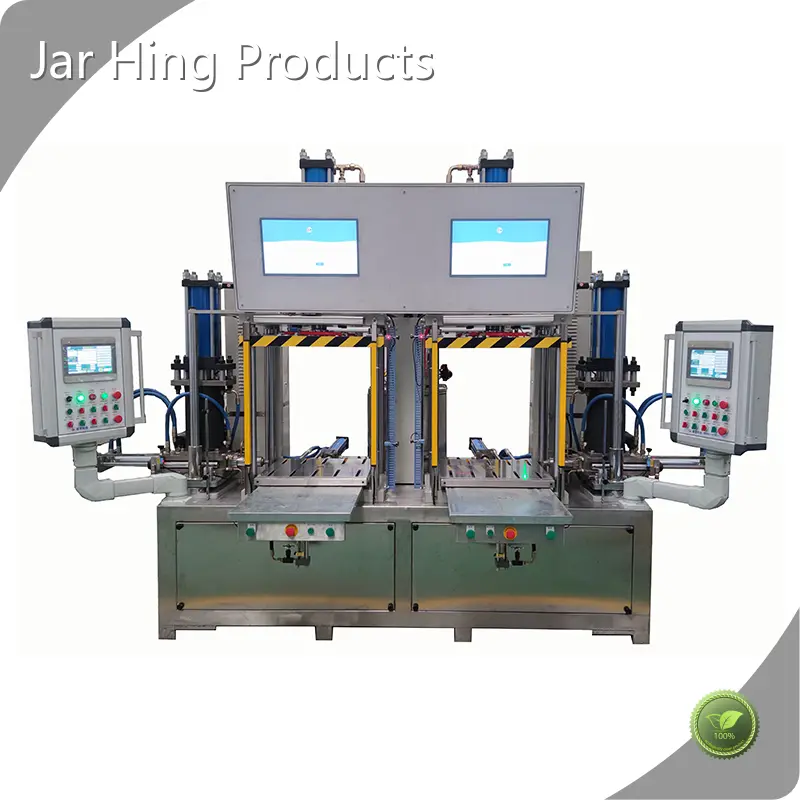

Investment Casting Equipment - - Jar Hing-13
|
Model No. |
MYY25-2M-ZN-HS-Z |
|
Place Of Origin |
China |
|
Old And New |
New |
|
Video Factory Inspection |
Provided |
|
Mechanical Test Report |
Not Available |
|
Marketing Type |
Ordinary Product |
|
Core Component Warranty Period |
1 Year |
|
Core Components |
Plc, Motor, Pump |
|
Warranty Period |
1 Year |
|
Core Selling Point |
High Productivity |
|
Out-of-warranty Service |
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
|
Applicable Industry |
Other |
1. two station 25t clamping pressure;
2. the maximum mold opening height is 600mm;
3. the minimum clamping height is 75mm;
4. dimension of pressing plate and lower workbench 770 × 600mm;
5. die space 620 × six hundred × 600mm;
6. the maximum single wax injection volume is 5L;
7. temperature parameters include: upper section temperature of cooling barrel, lower section temperature of cooling barrel, wax discharge temperature of cooling barrel, preparation temperature, preparation wax discharge temperature and wax injection temperature.
8. multi stage wax injection mode, wax injection pressure 0 ~ 10MPa;
9. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
10. digital control is adopted for fast and slow mode closing and injection pressure and injection flow.
11. it has the linkage function of manipulator mold taking.
12. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the Wax Injection Machine shall be chrome plated.
13. the temperature control adopts the independent heating and cooling type of insulation barrel, which avoids the previous equipment valve cracking and the carbon deposition of heat transfer oil.
14. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;
15. the servo oil pressure pump has the advantages of low energy consumption, low oil temperature and low noise.
16. with safety light curtain, with anti pressure hand protection function.
17. it can store 200 sets of process parameters, and all process parameters required for operation are set on the touch screen.
18. the paste making method adopts American MPI bucket + Fuhao secondary cooling paste making system, which is suitable for the production of thick wall wax parts.
19. have system fault diagnosis and alarm functions.
Company Advantages
· Jar Hing investment casting equipment is manufactured through superior manufacturing processes.
· The performance of investment casting equipment has achieved or surpassed the industrialization product performance standard.
· Jar Hing Products Co., Ltd constantly advancing with the times in investment casting equipment field.
Company Features
· Jar Hing Products Co., Ltd is a major producer of investment casting equipment in China.
· The production technology of investment casting equipment has been paid a lot of attention by Jar Hing.
· Our core is customer-centric. We will unwaveringly put clients as the top priority. For example, we will do thorough market research before developing or manufacturing products for targeted clients.
Application of the Product
Various in function and wide in application, the investment casting equipment can be used in many industries and fields.
With the concept of 'customers first, services first', Jar Hing Products always focuses on customers. And we try our best to meet their needs, so as to provide the best solutions.
