Product details of the investment casting equipment suppliers
Product Introduction
Our investment casting equipment suppliers is bright in colors to catch the eyes of people. The product has passed many international certificates, its quality can be assured. Jar Hing is dedicated to producing investment casting equipment suppliers complying with the industry standard.
| Model No. | MMGX-10 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |

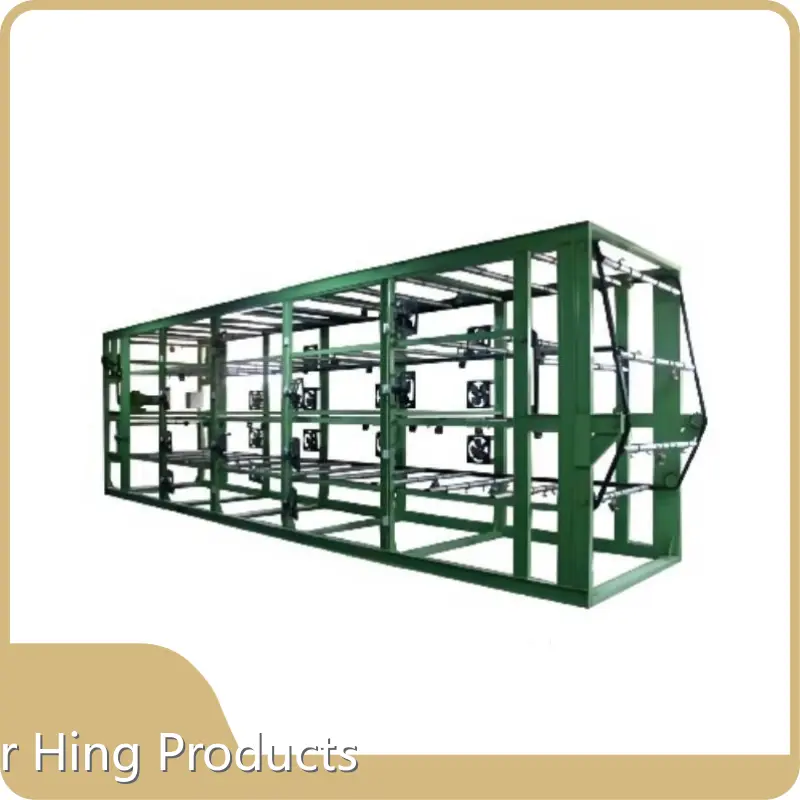

1. the upper and lower center distance of the cross bar shaft is 650mm;
2. the front and rear center distance of the cross bar shaft is 762mm;
3. length and working dimension of cross bar: 2000mm;
4. number of rollers: 48;
5. the chain length of drying line is 37m;
6. motor power 4kw;
7. operating speed: 0-800mm/min;
8. overall dimension 10000 × two thousand and five hundred × 2990mm;
9. the main structure of the drying line is welded with 14\u steel, which is simple in structure, reliable in strength and easy to maintain.
10. the drying line has chain breaking protection.
11. the motor is driven and driven by 20A double row sprocket and chain.
12. 4kw motor +bwed053 speed ratio 1:473 reducer is adopted, and the motor reducer is enlarged.
13. the drying line is equipped with 5.5kw Morishima frequency converter to make the running speed of the drying line adjustable.
14. the ear plate chain with large roller diameter is adopted. The straight drop of the roller is 39.67mm, the thickness of the chain plate is 4.8mm, the bearing capacity is large, the guiding performance is good, and it is not easy to break.
15. 6205 bearing is used for the cross bar; The outer diameter of the cross bar tube is 57mm and the thickness is 4mm; The diameter of the cross bar shaft is 30mm.
1. the upper and lower center distance of the cross bar shaft is 650mm;
2. the front and rear center distance of the cross bar shaft is 762mm;
3. length and working dimension of cross bar: 2000mm;
4. number of rollers: 48;
5. the chain length of drying line is 37m;
6. motor power 4kw;
7. operating speed: 0-800mm/min;
8. overall dimension 10000 × two thousand and five hundred × 2990mm;
9. the main structure of the drying line is welded with 14\u steel, which is simple in structure, reliable in strength and easy to maintain.
10. the drying line has chain breaking protection.
11. the motor is driven and driven by 20A double row sprocket and chain.
12. 4kw motor +bwed053 speed ratio 1:473 reducer is adopted, and the motor reducer is enlarged.
13. the drying line is equipped with 5.5kw Morishima frequency converter to make the running speed of the drying line adjustable.
14. the ear plate chain with large roller diameter is adopted. The straight drop of the roller is 39.67mm, the thickness of the chain plate is 4.8mm, the bearing capacity is large, the guiding performance is good, and it is not easy to break.
15. 6205 bearing is used for the cross bar; The outer diameter of the cross bar tube is 57mm and the thickness is 4mm; The diameter of the cross bar shaft is 30mm.
Company Feature
• Keeping up with the development trend of the Internet era, our company changed the business mode. We actively build offline marketing networks, expand online sales channels and opening official stores on several mainstream e-commerce platforms. Therefore, we gained a rapid growth of sales and the expansion of sales range.
• Founded in Jar Hing Products has a development history of years. Now we become an experienced manufacturer in the machinery industry.
• With a focus on customers, Jar Hing Products can develop and produce quality machinery and provide efficient and professional custom services, according to customers' actual needs.
• Jar Hing Products's mechanical equipment has stable performance and excellent quality. Moreover, our products are reasonable in price, good in appearance and easy in operation.
• Traffic convenience including easy and open highway access and the great geographic location is conducive to the transportation of Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment.
