One of the Professional Investment Casting Machine Manufacturers with Precision Casting Solutions.

Investment Casting Equipment Wholesale - Jar Hing-20 1
Investment Casting Equipment Wholesale - Jar Hing-20 2
Investment Casting Equipment Wholesale - Jar Hing-20 3
Investment Casting Equipment Wholesale - Jar Hing-20 4
Investment Casting Equipment Wholesale - Jar Hing-20 1
Investment Casting Equipment Wholesale - Jar Hing-20 2
Investment Casting Equipment Wholesale - Jar Hing-20 3
Investment Casting Equipment Wholesale - Jar Hing-20 4

Investment Casting Equipment Wholesale - Jar Hing-20

Inquiry
Send your inquiry

Company Advantages

· investment casting equipment is designed by renowned designers in the field.

· We have built a strict quality control system to fully ensure its quality.

· Once there is any problem for our investment casting equipment, your sales will follow the case and help to solve at earliest time.

Product parameters
Product description
Product characteristics
Model No. MLS-1800
Place Of Origin China
Old And New New
Video Factory Inspection Provided
Mechanical Test Report Not Available
Marketing Type Ordinary Product
Core Component Warranty Period 1 Year
Core Components Plc, Motor, Pump
Warranty Period 1 Year
Core Selling Point High Productivity
Out-of-warranty Service Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services

(in Which Countries Are There Overseas Service Outlets)

None

Showroom Location

(in Which Countries Are There Sample Rooms Overseas)

None
Applicable Industry Other

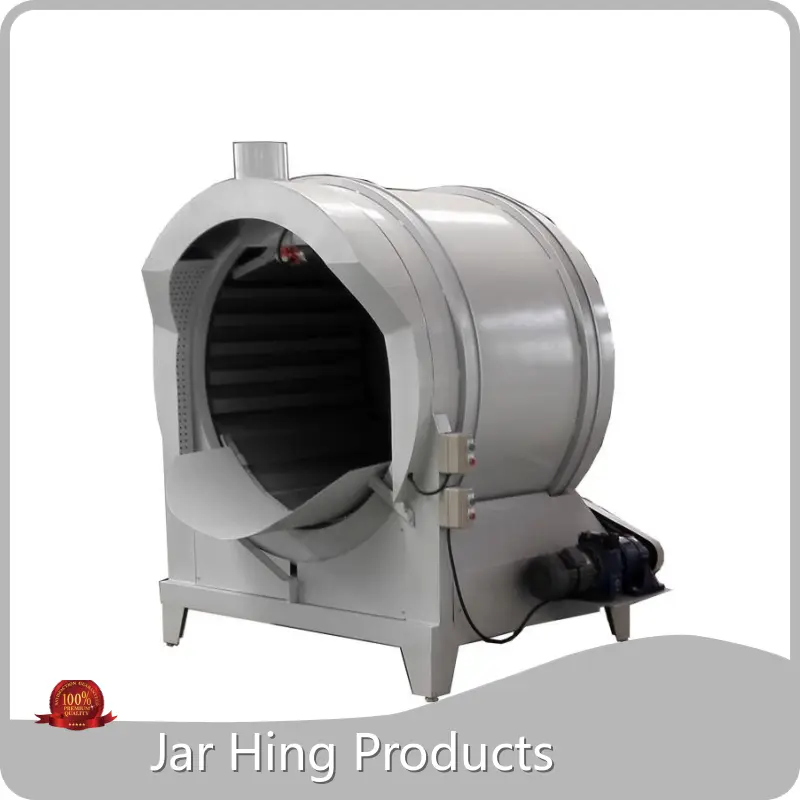

1. speed: 1.77-8.85r/min, stepless speed governor;
2. sand spraying power: 1.5kw;
3. vibration power: 0.1kw;
4. sand pouring space size: Φ 1300*1000mm;
5. barrel size: Φ 1800*1200mm;
6. add sand from the rear;
7. the processing rail belt is adopted, which has the advantages of stable operation, low noise and few faults;
8. the sand spraying is uniform, the sand spraying amount is convenient and adjustable, the operation is simple, and the sand spraying area is large, which is suitable for large castings.

Item Unit MYY20-1KM MYY50-1KM
Maximum clamping force T 20 50
Maximum opening height mm 550 550
Minimum mode height mm 100 100
Upper plate size mm 600(L)×600(W) 600(W)×600(W)
Lower worktable moving stroke mm 700 700
Telescopic range of ejection nozzle mm 0~300 0~300
Lifting range of ejection nozzle mm 0~300 0~300
Ground height of work table mm 895 895
Rated hanging weight of cantilever crane Kg 500 500
Maximum use volume of wax storage cylinder L 120 120
Single maximum paraffin amount L 7 12
Wax injection pressure MPa 1.0~10 1.0~10
Pressure holding time S 0~9999 0~9999
Wax injection time S 0~9999 0~9999
Installed power KW 10 10
Temperature control mode   Touch screen +PLC temperature control module Touch screen +PLC temperature control module
Temperature control of wax storage bucket 75~90 75~90
Isothermal temperature control 50~65 50~65
Equipment dimensions mm 2520*1760*3000 2520*1760*3000
Self weight of equipment T 3.0 3.9

1. speed: 1.77-8.85r/min, stepless speed governor;
2. sand spraying power: 1.5kw;
3. vibration power: 0.1kw;
4. sand pouring space size: Φ 1300*1000mm;
5. barrel size: Φ 1800*1200mm;
6. add sand from the rear;
7. the processing rail belt is adopted, which has the advantages of stable operation, low noise and few faults;
8. the sand spraying is uniform, the sand spraying amount is convenient and adjustable, the operation is simple, and the sand spraying area is large, which is suitable for large castings.


Company Features

· Jar Hing brand is always good at manufacturing highly technological investment casting equipment.

· With our wide range of extensive fabrication facilities, our company remains competitive in the investment casting equipment industry. These facilities allow us to manufacture products in line with the highest standards. We have a project management team. They have a wealth of industrial experience and knowledge about investment casting equipment. They can manage well the whole production project and provide expert advice throughout the order process.

· Jar Hing Products Co., Ltd intends to make a renowned brand with high efficiency, high quality and superb support.


Product Details

The investment casting equipment we produce are able to stand up to the details.


Product Comparison

investment casting equipment in Jar Hing Products has the following advantages, compared with same kind of products in the market.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
