Investment Casting Machine Price Wholesale - Jar Hing-4
| Model No. | MYPMX-800 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. main motor power: 7.5kW;
2. power of hydraulic station: 1.5kw;
3. rubber wheel size: φ three hundred × 150mm;
4. rubber wheel speed: 2580r/min;
5. specification of sand belt: 2100 × 150mm;
6. linear speed of sand belt: 40.6m/s;
7. diameter of disc workbench: φ 800mm;
8. rotating speed of disc workbench: 1-3r/min
9. lifting stroke of workbench: 130mm;

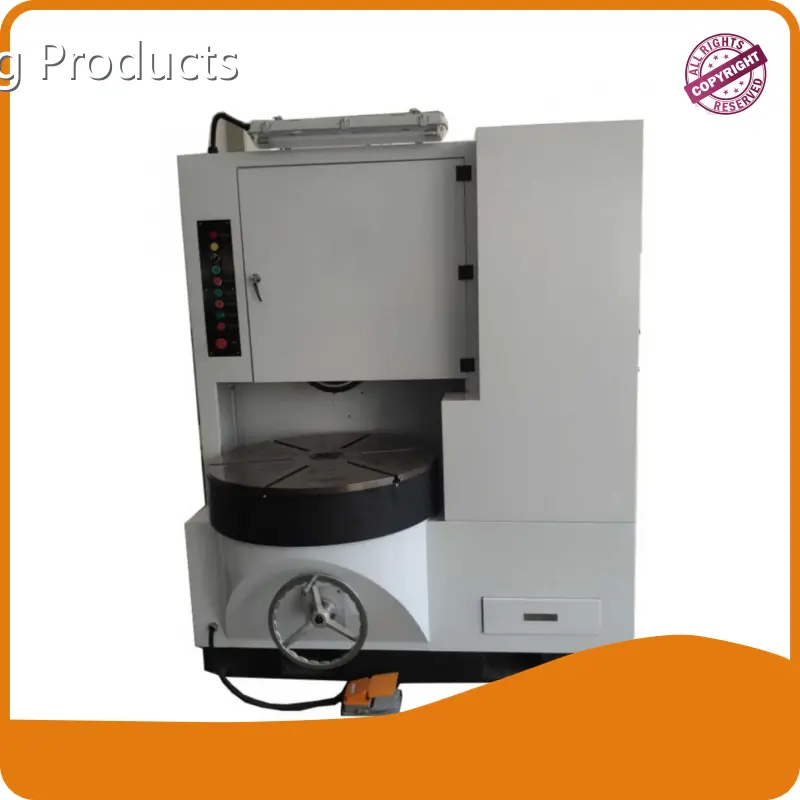

10. the disc abrasive belt machine is composed of upper and lower parts. The upper part consists of a 150 wide rubber wheel with high-speed rotation of the abrasive belt, and the lower part is a rotating disc with adjustable speed. The trapezoidal groove on the disc is used to fix multiple groups of fixtures. Each group of fixtures can hold multiple parts. When the fixture full of parts is transferred to the lower part of the abrasive belt with the turntable, the pouring and riser of the parts are polished off.
11. the equipment uses PLC to control the hydraulic motor to drive the disc to rotate, which can make full use of the sand belt. Electric control to replace the abrasive belt, one key operation, simple and fast; The rotating speed of the disc is adjustable, and the height of the turntable is adjustable. It can be started and closed by pressing the button, which greatly reduces the operation difficulty and work intensity of workers.
12. it is suitable for Automatic grinding of small piece plane gate and large piece gate with regular size in large quantities. It can grind multiple pieces at one time, with higher efficiency; Good consistency, eliminate the phenomenon of poor grinding effect caused by human operation errors.
1. main motor power: 7.5kW;
2. power of hydraulic station: 1.5kw;
3. rubber wheel size: φ three hundred × 150mm;
4. rubber wheel speed: 2580r/min;
5. specification of sand belt: 2100 × 150mm;
6. linear speed of sand belt: 40.6m/s;
7. diameter of disc workbench: φ 800mm;
8. rotating speed of disc workbench: 1-3r/min
9. lifting stroke of workbench: 130mm;
10. the disc abrasive belt machine is composed of upper and lower parts. The upper part consists of a 150 wide rubber wheel with high-speed rotation of the abrasive belt, and the lower part is a rotating disc with adjustable speed. The trapezoidal groove on the disc is used to fix multiple groups of fixtures. Each group of fixtures can hold multiple parts. When the fixture full of parts is transferred to the lower part of the abrasive belt with the turntable, the pouring and riser of the parts are polished off.
11. the equipment uses PLC to control the hydraulic motor to drive the disc to rotate, which can make full use of the sand belt. Electric control to replace the abrasive belt, one key operation, simple and fast; The rotating speed of the disc is adjustable, and the height of the turntable is adjustable. It can be started and closed by pressing the button, which greatly reduces the operation difficulty and work intensity of workers.
12. it is suitable for Automatic grinding of small piece plane gate and large piece gate with regular size in large quantities. It can grind multiple pieces at one time, with higher efficiency; Good consistency, eliminate the phenomenon of poor grinding effect caused by human operation errors.
Company Advantages
· Our abundant experience enables the Jar Hing investment casting machine price is manufactured finely and efficiently.
· Our quality management system ensures that products meet international quality standards.
· Jar Hing Products Co., Ltd is able to keep pace with an ever increasing speed of investment casting machine price market change.
Company Features
· Jar Hing Products Co., Ltd is a reliable Chinese company that has achieved a stable and global success in designing and manufacturing investment casting machine price.
· Our business has been successfully expanding to many regions and countries. So far, we have earned a relatively large foreign market share, and the sales volumes are estimated to increase in the coming years.
· We will provide high quality investment casting machine price as well as quality service. Inquiry!
Application of the Product
The investment casting machine price produced by Jar Hing Products can be used in many fields.
Jar Hing Products insists on providing customers with one-stop and complete solution from the customer's perspective.
Room 805, Huaxu Building, NO.95 Renmin South Road, Taicang City, Jiangsu Province, Suzhou, Jiangsu, China
