One of the Professional Investment Casting Machine Manufacturers with Precision Casting Solutions.

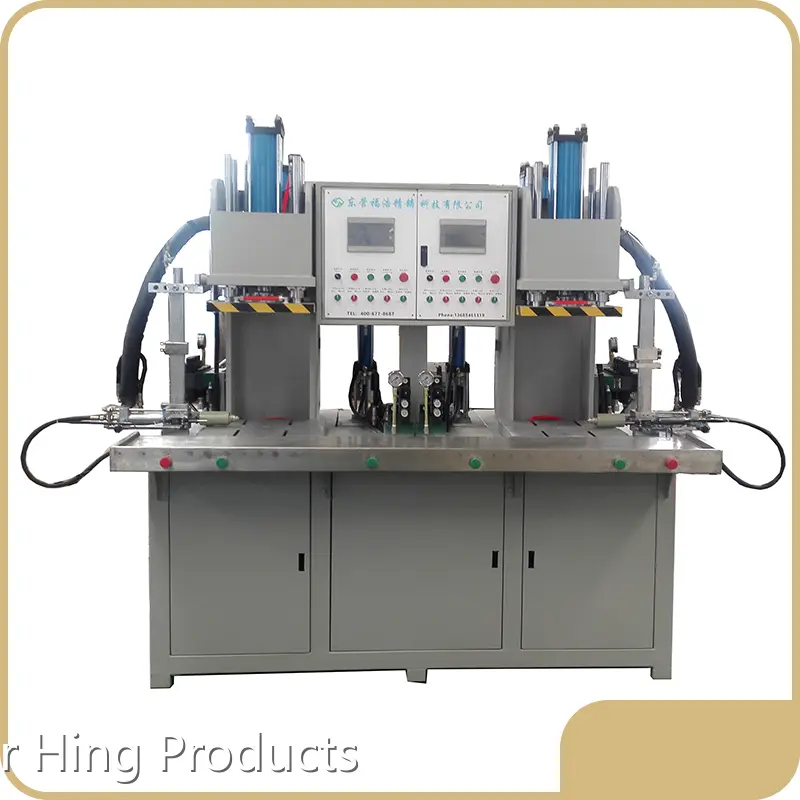

Jewellery Wax Injector Machine - - Jar Hing 1
Jewellery Wax Injector Machine - - Jar Hing 2
Jewellery Wax Injector Machine - - Jar Hing 1
Jewellery Wax Injector Machine - - Jar Hing 2

Jewellery Wax Injector Machine - - Jar Hing

Inquiry
Send your inquiry

Company Advantages

· Jar Hing jewellery wax injector machine undergoes a overall assessment of product design to reduce the uncertainty of design.

· Our jewellery wax injector machine have won a high admiration and is widely trusted at home and abroad for its well-produced crafts.

· Jar Hing Products Co., Ltd's success is built on its respectful attitude to customers.

Product parameters
Product characteristics

Model No.

MMY16-2KM

Place Of Origin

China

Old And New

New

Video Factory Inspection

Provided

Mechanical Test Report

Not Available

Marketing Type

Ordinary Product

Core Component Warranty Period

1 Year

Core Components

Plc, Motor, Pump

Warranty Period

1 Year

Core Selling Point

High Productivity

Out-of-warranty Service

Video Technical Support, Online Support, Spare Parts,

Field Maintenance And Repair Service

Where To Provide Local Services

(in Which Countries Are There Overseas Service Outlets)

None

Showroom Location

(in Which Countries Are There Sample Rooms Overseas)

None

Applicable Industry

Other

1.  the maximum clamping force is 16t;

2.  the maximum mold opening height is 500mm;

3.  the minimum clamping height is 70mm;

4.  pressing plate size 430 × 380mm;

5.  base plate size 500 × 500mm;

6.  auxiliary workbench 2250 × 375mm;

7.  expansion range of nozzle: 0 ~ 200mm;

8.  the lifting range of nozzle is 0 ~ 200mm;

9.  the maximum usable volume of wax storage cylinder is 120L;

10.  the maximum single wax injection volume is 5L;

11.  wax injection pressure: 0.5 ~ 10MPa;

12.  all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;

13.  French Schneider shall be adopted for contactors and relays;

14.  the touch screen is made of Taiwan vinylon;

15.  temperature control mode touch screen +plc temperature control module;

16.  the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.

17.  the hydraulic oil tank is made of stainless steel;  The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;

18.  four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection;  It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production;  Workbench auxiliary water cooling.


Company Features

· After years of evolution, Jar Hing Products Co., Ltd has been a reliable manufacturer and supplier of jewellery wax injector machine in the industry.

· Our professional manufacturing teams are the key to our efficient and reliable operation. With their years of rich experience in the jewellery wax injector machine industry, they continually advance our production process technology that is both critical to improving our capabilities and output.

· Our sales team are professional to bring you best purchasing experience for our jewellery wax injector machine. Please contact us!


Application of the Product

The jewellery wax injector machine produced by our company is widely used in various industries and fields.

In addition to creating excellent Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment, Jar Hing Products is also able to provide comprehensive and reasonable solutions for customers.
