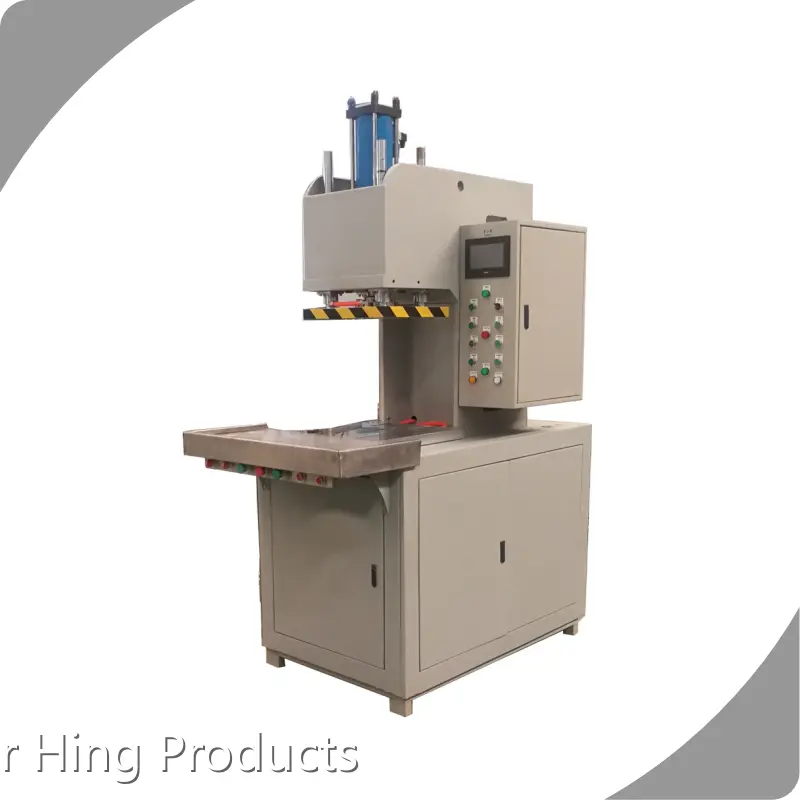

Jewelry Wax Machine - - Jar Hing
Product details of the jewelry wax machine
Product Information
Jar Hing jewelry wax machine is designed to create an original look that is truly unique. The product has been carefully checked by both our own QC staff and the authoritative third parties. Jar Hing Products Co., Ltd's experienced engineers are ready to provide you with pre-sales post-sales technical support.
| Model No. | MTCSX-20-Z |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
