Product details of the shell moulding machine
Quick Overview
Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment are reasonably designed. They are stable in performance and easy in operation. They are quality-reliable and use-durable. Innovative design concept: the design concept of Jar Hing shell moulding machine is carried out by a team of professionals who keep innovative ideas in mind and thus the innovation-oriented product is made. It is conducted by professional inspection team at every step from design to finish. The product becomes very popular with its marked features among customers in the industry.
Product Description
Jar Hing Products's shell moulding machine is exquisite in details.
| Model No. | MFS-650 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |

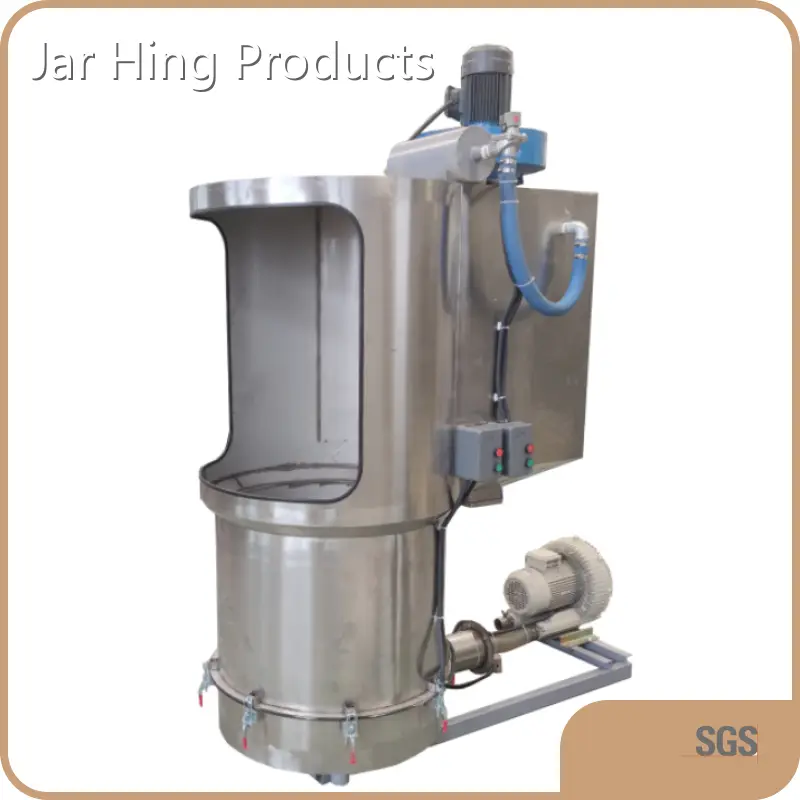

1. stainless steel barrel, sand barrel diameter 800, barrel depth 600mm;2. power: 5.5kW;3. dust removal fan 2.2kW;4. overall dimension 1820 × nine hundred and ninety × 2400mm;5. the self-contained cartridge filter can save energy without affecting environmental parameters;6. the box type quick clip assembly is easy to disassemble, which can quickly replace the screen and clean up debris such as particles, so as to improve efficiency.7. equipped with low-noise fans, the working noise of the equipment is greatly reduced and the working environment of workers is improved.
| Note | Unit | MFS-650 |
| Diameter of sand shocking bucket | mm | Φ650 |
| Deepth of sand shocking bucket | mm | 550 |
| Power of fan | kw | 5.5 |
| Dimensions | mm | 1700×1020×1930 |
| Weight of machine | KG | 240 |
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
