Shell Moulding Machine - - Jar Hing-3
| Model No. | MZJ-900 |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |

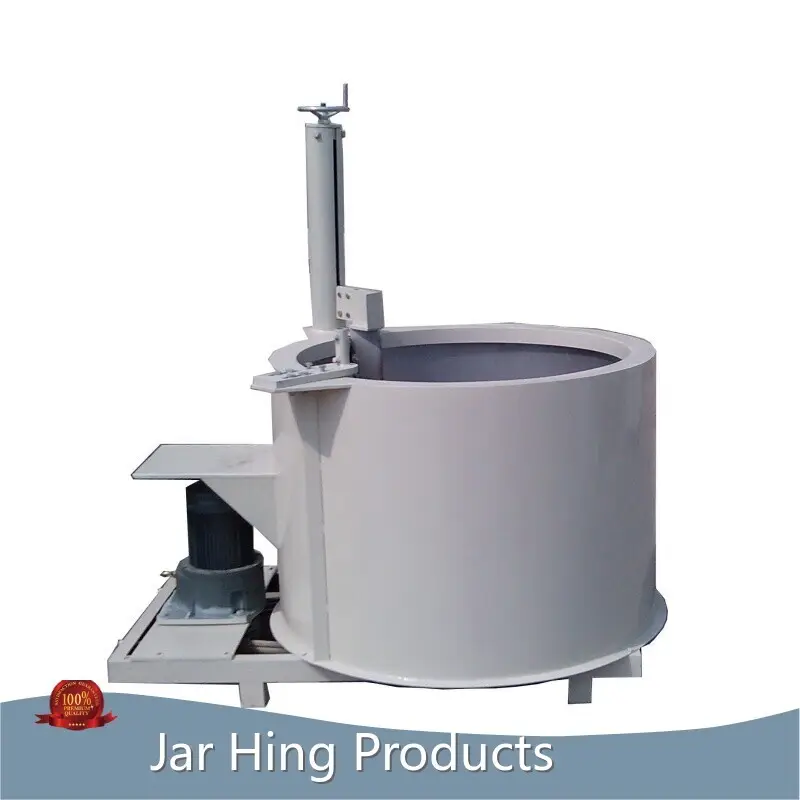

1. slurry barrel diameter 1200mm;2. the depth of the pulp barrel is 800mm;3. speed: 17.87r/min;4. the inner slurry barrel is made of 3mm thick stainless steel;5. effective maximum working dimension: φ 1040*650mm6. installed power: 2.2kW;7. the new energy-saving driving design is adopted for the rotation of the pulp barrel, which is half of the power consumption of the old pulp dipping machine, and the triangle belt can not be replaced for a long time;8. the reducer adopts an external integrated gear reducer, which has low noise and is convenient for maintenance;
| Note | Unit | MZJ-900 |
| Plant capacity | KW | 1.5 |
| Drum speed | r/min | 21.93 |
| Drum volume | L | 423 |
| Drum diameter | mm | 930 |
| Drum deepth | mm | 800 |
| Dimensions | mm | 2420×1100×1870 |
| Weight | KG | 373 |
1. The maximum clamping force is 20t;
2. The maximum formwork opening height is 500mm;
3. The minimum clamping height is 70mm;
4. Dimension of pressing plate and lower worktable 770 × 600mm;
5. Die space 620×600×500mm;
6. Auxiliary workbench 2200 × 410mm;
7. The expansion range of the nozzle is 0 ~ 200mm;
8. The lifting range of nozzle is 0 ~ 200mm;
9. The maximum use volume of wax storage cylinder is 100L;
10. The maximum wax injection volume of a single shot is 5L;
11. Wax injection pressure: 0 ~ 10MPa;
Company Advantages
· The simple and unique design makes our shell moulding machine easy to handle and convenient to use.
· The product is characterized by its high quality and durability.
· The product has been extensively used in the global market because of its remarkable advantages.
Company Features
· We, as a professional enterprise, are perfectly following the international standard to produce shell moulding machine.
· The company has a scientific management model and well-trained and excellent employees.
· We think highly of ethical standards. Under this principle, we always do fair trade, refuse to manipulate or falsely advertise to our customers or potential consumers, as well as vicious business competition such as bidding up the price.
Application of the Product
The shell moulding machine produced by Jar Hing Products is of high quality and is widely used in the industry.
With a focus on customers' potential needs, Jar Hing Products provides customers with one-stop solutions.
