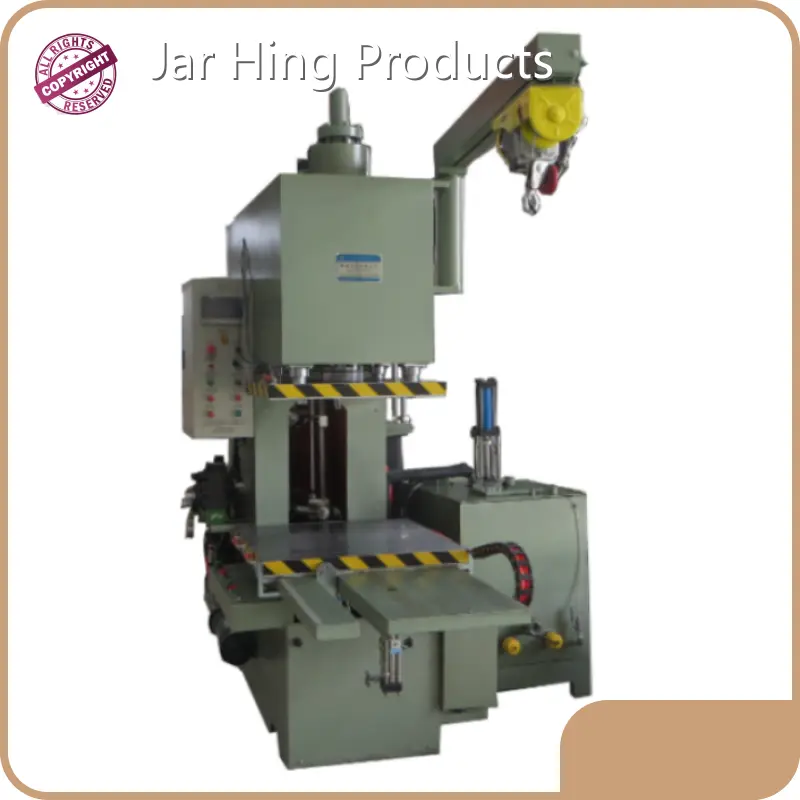

Wax Injection Machine for Investment Casting - - Jar Hing
Company Advantages
· Jar Hing wax injection machine for investment casting is manufactured based on the industry-leading technology.
· The product has good quality and reliable performance.
· The product has been widely recognized in the industry through the broad sales network.
| Model No. | MMY20-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |
| Item | Unit | MYY20-1KM | MYY50-1KM |
| Maximum clamping force | T | 20 | 50 |
| Maximum opening height | mm | 550 | 550 |
| Minimum mode height | mm | 100 | 100 |
| Upper plate size | mm | 600（L）×600（W） | 600（W）×600（W） |
| Lower worktable moving stroke | mm | 700 | 700 |
| Telescopic range of ejection nozzle | mm | 0～300 | 0～300 |
| Lifting range of ejection nozzle | mm | 0～300 | 0～300 |
| Ground height of work table | mm | 895 | 895 |
| Rated hanging weight of cantilever crane | Kg | 500 | 500 |
| Maximum use volume of wax storage cylinder | L | 120 | 120 |
| Single maximum paraffin amount | L | 7 | 12 |
| Wax injection pressure | MPa | 1.0～10 | 1.0～10 |
| Pressure holding time | S | 0～9999 | 0～9999 |
| Wax injection time | S | 0～9999 | 0～9999 |
| Installed power | KW | 10 | 10 |
| Temperature control mode | Touch screen +PLC temperature control module | Touch screen +PLC temperature control module | |
| Temperature control of wax storage bucket | ℃ | 75～90 | 75～90 |
| Isothermal temperature control | ℃ | 50～65 | 50～65 |
| Equipment dimensions | mm | 2520*1760*3000 | 2520*1760*3000 |
| Self weight of equipment | T | 3.0 | 3.9 |
1. Wax injection pressure: 0.5 ~ 10MPa;2. All oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;3. French Schneider shall be adopted for contactors and relays;4. The touch screen is made of Taiwan vinylon;5. Temperature control mode touch screen +plc temperature control module;6. Fast running oil cylinder shall be adopted for die cylinder;7. Equipped with 0.5T mold lifting device;8. The temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.9. The hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;10. High and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;11. It has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.12. All processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Features
· Jar Hing Products Co., Ltd develops rapidly. Our capability in manufacturing wax injection machine for investment casting surpass many other suppliers no matter at home or abroad.
· By creating recently advanced methods, Jar Hing accomplishes great achievement in its own high quality. Thanks to the advanced techniques, our high-end wax injection machine for investment casting can attain the best quality.
· Jar Hing hopes to satisfy every customer with our excellent quality wax injection machine for investment casting and sincere attitude. Please contact.
Product Details
With a focus on details, Jar Hing Products strives to create high-quality wax injection machine for investment casting.
