Wax Injection Machine for Jewelry Wholesale - Jar Hing
Product details of the wax injection machine for jewelry
Product Description

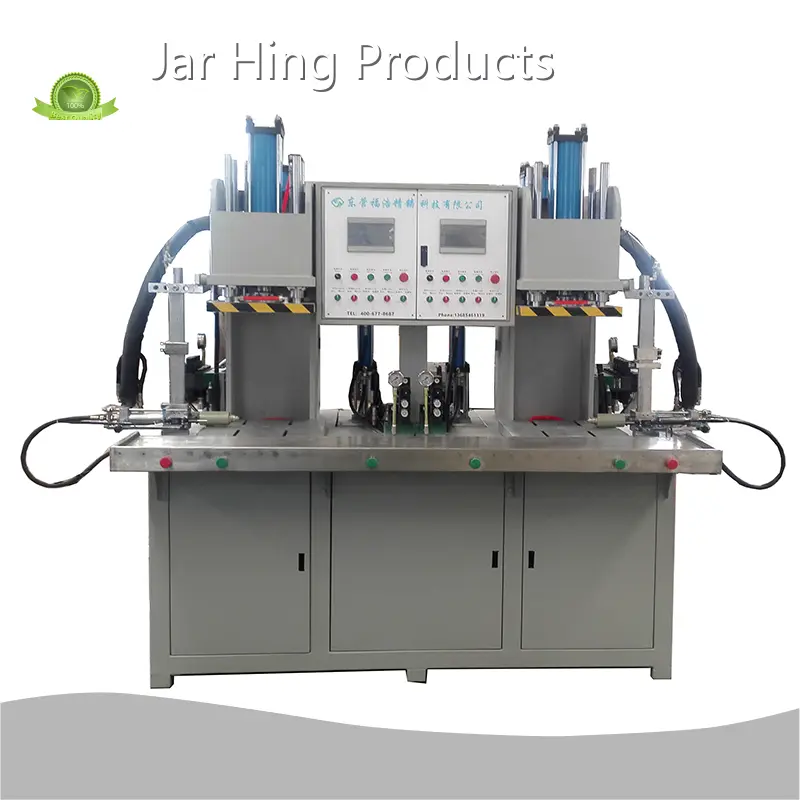

Using the state-of-the-art production equipment, Jar Hing wax injection machine for jewelry is produced with flawless surface finishes. Our clients greatly trust the product for its unmatched quality and long-lasting performance. It is supposed to cater to all kinds of customers across the market.
|
Model No. |
MMY16-2KM |
|
Place Of Origin |
China |
|
Old And New |
New |
|
Video Factory Inspection |
Provided |
|
Mechanical Test Report |
Not Available |
|
Marketing Type |
Ordinary Product |
|
Core Component Warranty Period |
1 Year |
|
Core Components |
Plc, Motor, Pump |
|
Warranty Period |
1 Year |
|
Core Selling Point |
High Productivity |
|
Out-of-warranty Service |
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
|
Applicable Industry |
Other |
1. the maximum clamping force is 16t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 70mm;
4. pressing plate size 430 × 380mm;
5. base plate size 500 × 500mm;
6. auxiliary workbench 2250 × 375mm;
7. expansion range of nozzle: 0 ~ 200mm;
8. the lifting range of nozzle is 0 ~ 200mm;
9. the maximum usable volume of wax storage cylinder is 120L;
10. the maximum single wax injection volume is 5L;
11. wax injection pressure: 0.5 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;
18. four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection; It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production; Workbench auxiliary water cooling.
Company Feature
• Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment greatly improve production efficiency. They are of compact structure, stable performance, reliable quality, high cost performance, and wide application.
• Our company's product sales network is spreading to the whole country. Besides, it is also radiating to Europe, Africa, America and other countries and regions.
• Jar Hing Products is dedicated to providing customers with excellent services.
• Under the influence of people-oriented culture, our company has established an excellent team to promote development. The team members are positive, innovative and dedicated.
• Our company has obvious geographical location advantages, so the transportation is very convenient.
Jar Hing Products is looking forward to hearing from you!
Room 805, Huaxu Building, NO.95 Renmin South Road, Taicang City, Jiangsu Province, Suzhou, Jiangsu, China
