Wax Injection Machine Suppliers by Jar Hing-1

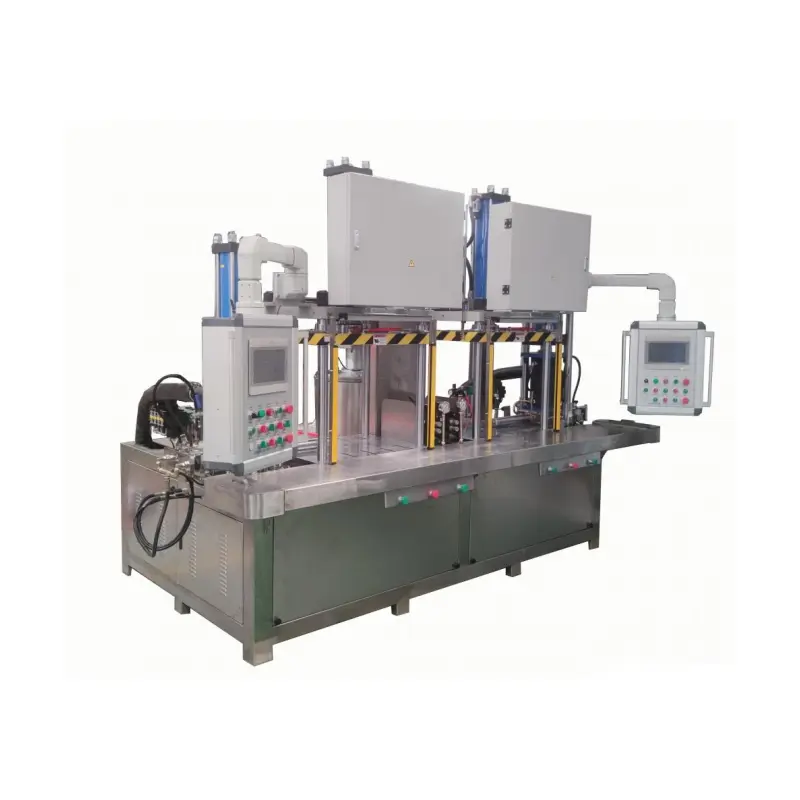

Product details of the wax injection machine suppliers
Product Overview
This solid and durable wax injection machine suppliers is of scientific design and reasonable structure. It is stable in performance and reliable in quality. It is easy to operate and maintain. All these make it more cost-effective than other products in the same category. The Jar Hing wax injection machine suppliers offered by us is manufactured under the guidance of our experienced professionals. It has outstanding performance and irreplaceable charm. wax injection machine suppliers is easy in operation, excellent in performance, and reliable in quality. It can meet the production and processing needs of various types of footwear, including leather shoes, sneakers, boots, sandals, canvas shoes, and others. Jar Hing Products Co., Ltd has great product and talented staff.
Product Introduction
Jar Hing Products's wax injection machine suppliers is perfect in every detail.
| Model No. | MYY25-2M-ZN-Z |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 60t;2. the maximum mold opening height is 800mm;3. the minimum clamping height is 90mm;4. lower workbench size 1000 × 1000mm;5. upper pressing plate size 1000 × 1000mm;6. the moving stroke of the lower workbench is 1000mm;7. expansion range of nozzle: 0 ~ 400mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection amount per time is 20L;11. wax injection pressure: 0 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. both fast and slow mode closing and injection pressure and injection flow are digitally controlled.14. it has the linkage function of manipulator mold taking.15. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.16. the temperature control adopts the independent heating and cooling type of insulation barrel, which avoids the previous equipment valve cracking and the carbon deposition of heat transfer oil.17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;18. temperature parameters include: wax storage barrel temperature, preparation temperature and wax injection temperature.19. the quick running oil cylinder is adopted for the die cylinder;20. equipped with 1t mold lifting device;
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Advantages
Jar Hing Products Co., Ltd, a manufacturer that enjoys designing products with clients, is well known for its credibility and strong R&D competence in wax injection machine suppliers. Jar Hing Products Co., Ltd owns professional and experienced technical team to promise normal operation of production machines. Doing the best wax injection machine suppliers is the common pursuit and ideal of Jar Hing. Ask!
Hello, if you have any suggestions on Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment, please leave your contact information. We will contact you in time!
