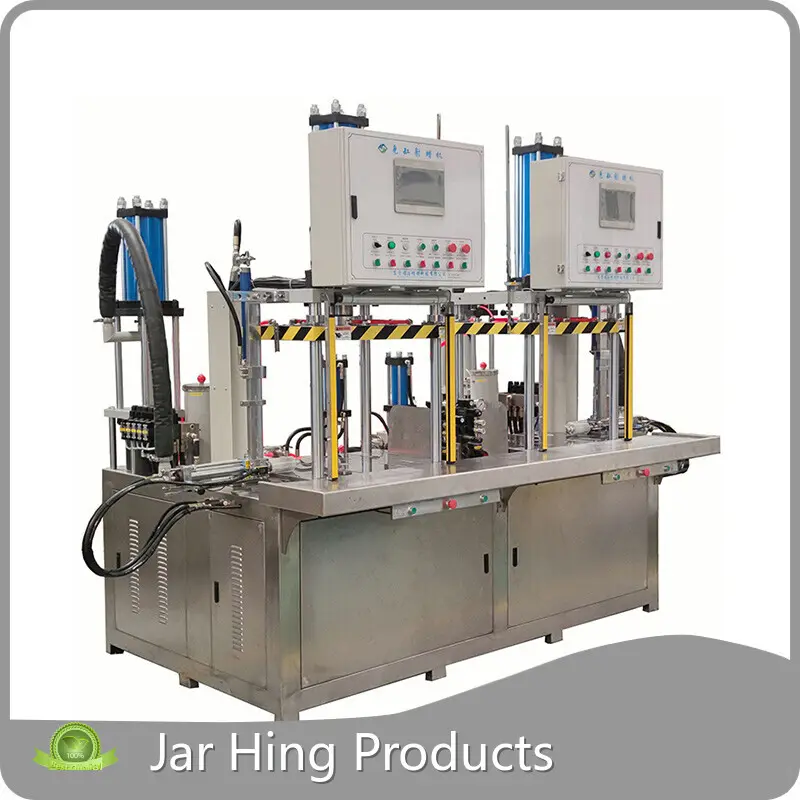

Product details of the wax injection machine suppliers
Product Description
The production of Jar Hing wax injection machine suppliers adopts standardized production technology. The high-performance product meets the needs of industrial standards. The offered product can be vastly used in the industry.
| Model No. | MYY20-2M-ZY |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |
| Description | Unit | Specification |
| Clamping force(max) | T | 16 |
| Mold usage space (depth× width× height) | mm | 620*600*600 |
| Lower table size | mm | 770×600 |
| Pressure plate size | mm | 770×600 |
| Maximum mold opening height | mm | 600 |
| Minimum height | mm | 70 |
| Move the workbench | mm | 600*600 |
| The nozzle hydraulically adjusts the stroke | mm | 0～250 |
| The nozzle adjusts the stroke up and down | mm | 0～300 |
| Table height | mm | 880 |
| Maximum amount of wax injection in a single stroke | L | 5 |
| Maximum injection pressure | MPa | 0～10 |
| System temperature control | ℃ | 50～65 |
| Wax box volume | L | 100*2 |
| Servo oil pump power | KW | 6.6KW*2 |
| Ice water is supplied externally | ℃ | ≤13 |
| Dimensions | mm | 3600x1800x2670 |
1. The plate is sheathed 4-column structure, stable and convenient Automatic mold mold assembly;
2. Pressure plate and the worktable are used four water cooling method, the fast cooling of wax;
3. The use of touch screen man-machine interface control, to ensure that the operation is simple, stable process parameters;
4. The equipment has dual mode, L pressure + two times H pressure filling wax injection mode, H pressure +L wax injection mode, H pressure +L pressure + two times H wax injection mode, automatic top function, automatic core pulling function;
5. The big layer of the three tubes, wax cooler and wax cylinder to meet the production of large molds.
6, The use of low-voltage electrical equipment world brand Schneider; hydraulic system using the original Taiwan, cylinder seal with the Japanese NOK seal.
7. With the function of secondary pressurization and wax supplement, the temperature of wax paste preparation is lower.
