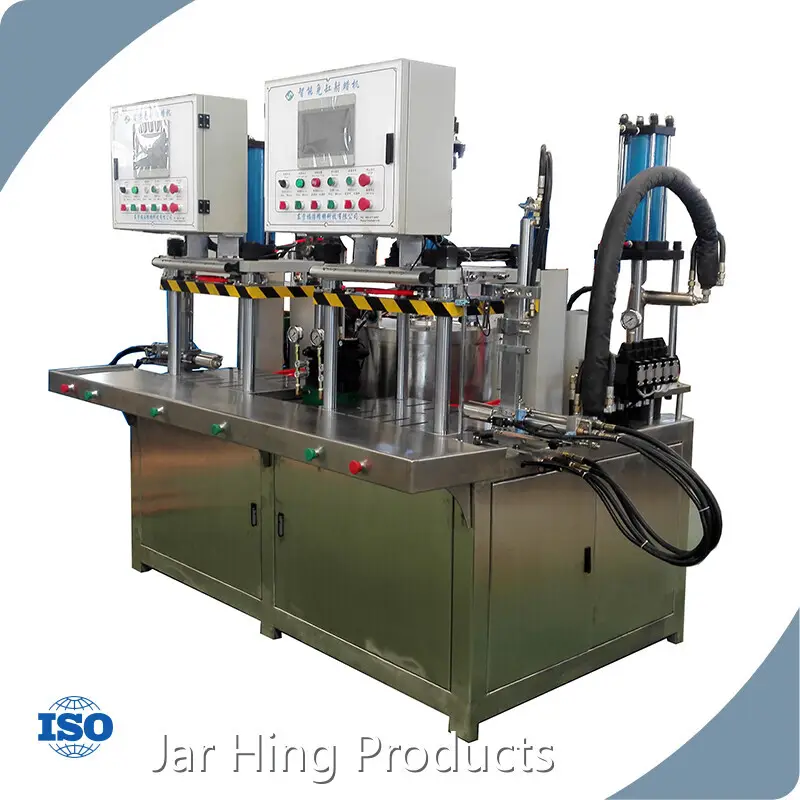

Wax Injection Machine Suppliers Wholesale - Jar Hing
Company Advantages
· wax injection machine suppliers is quite attractive with its design.
· The exceptional performance and good durability keep the product ahead of the competition.
· Our wax injection machine suppliers have been through strict quality test before they are packed.
| Model No. | MYY16-2ZSL-HB |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 16t;2. the maximum mold opening height is 500mm;3. the minimum clamping height is 70mm;4. dimension of pressing plate and lower workbench 710 × 500mm;5. die space 550 × five hundred × 500mm;6. the moving distance of the sliding plate is 500mm;7. the expansion range of the nozzle is 0 ~ 250mm;8. the lifting range of nozzle is 0 ~ 200mm;9. size of paste making barrel φ 600*800mm;10. the maximum single wax injection volume is 5L;11. wax injection pressure: 0 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. the contactor adopts Schneider of France;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;18. four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection; It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production; Workbench auxiliary water cooling.19. with safety light curtain, with anti pressure hand protection function.20. 201 stainless steel frame.
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Features
· After years of rapid development, Jar Hing Products Co., Ltd has become a leader in the field of wax injection machine suppliers.
· Through leading technology, wax injection machine suppliers has helped Jar Hing win the recognition and trust of customers. It is the progressive technology that our wax injection machine suppliers has won the popularity in the field.
· Our company recognizes increasingly serious environmental issues as a topmost priority. So we integrate circular thinking into product and process design to facilitate sustainable resources usage and foster profitable circular business.
Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of wax injection machine suppliers in the following section for your reference.
Application of the Product
The wax injection machine suppliers produced by our company is widely used.
With rich manufacturing experience and strong production capability, Jar Hing Products is able to provide professional solutions according to customers' actual needs.
Product Comparison
The wax injection machine suppliers produced by Jar Hing Products is better than the previous generation. The specific performance is as follows.
