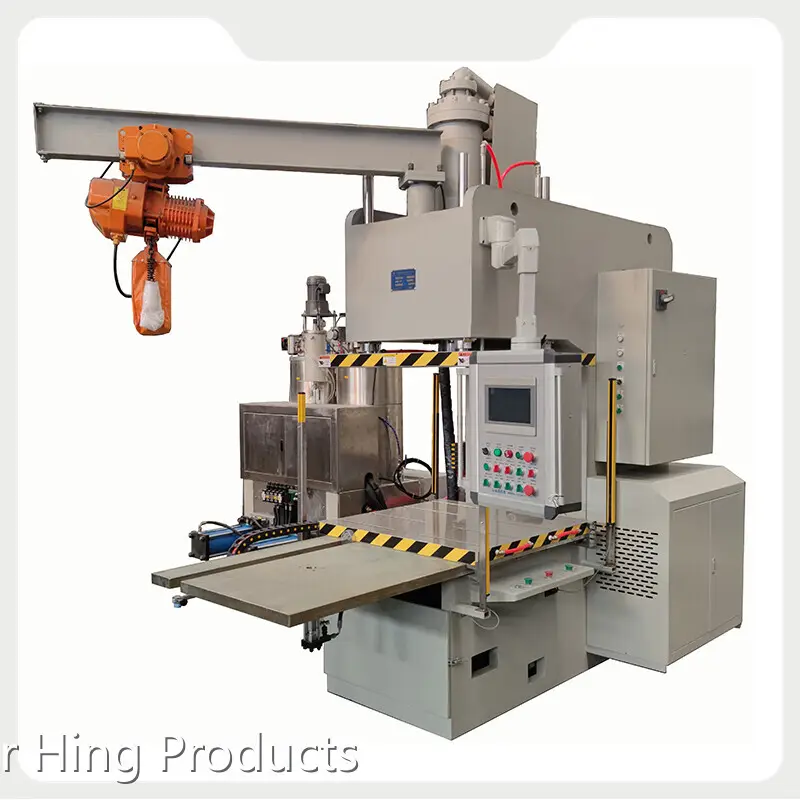

Wax Injection Molding Machine by Jar Hing-1
Company Advantages
· The advanced technology has been applied throughout the whole production of Jar Hing wax injection molding machine.
· Strict testing on product performance is carried out to ensure the consistent and long-lasting performance.
· In the fierce market competition, it gradually shows strong competitiveness.
| Model No. | MMY60-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 60t;2. the maximum mold opening height is 800mm;3. the minimum clamping height is 90mm;4. lower workbench size 1000 × 1000mm;5. upper pressing plate size 1000 × 1000mm;6. the moving stroke of the lower workbench is 1000mm;7. expansion range of nozzle: 0 ~ 400mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection amount per time is 20L;11. wax injection pressure: 0 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. both fast and slow mode closing and injection pressure and injection flow are digitally controlled.14. it has the linkage function of manipulator mold taking.15. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.16. the temperature control adopts the independent heating and cooling type of insulation barrel, which avoids the previous equipment valve cracking and the carbon deposition of heat transfer oil.17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;18. temperature parameters include: wax storage barrel temperature, preparation temperature and wax injection temperature.19. the quick running oil cylinder is adopted for the die cylinder;20. equipped with 1t mold lifting device;
Company Features
· Jar Hing is highly valued by more customers due to its advanced production line.
· Jar Hing Products Co., Ltd has the strong technical strength and ability of researching and developing wax injection molding machine by ourselves. Jar Hing Products Co., Ltd has brought in lots of high level technical elites for developing wax injection molding machine.
· Jar Hing Products Co., Ltd holds the firm belief of being the most popular wax injection molding machine supplier. Please contact.
Product Details
Jar Hing Products adheres to the principle of 'details determine success or failure' and pays great attention to the details of wax injection molding machine.
Enterprise Advantages
Jar Hing Products has an experienced management team and a group of professional production personnel. This lays a solid foundation for company development.
Jar Hing Products strives to provide professional services to meet customer demand and create great value for customers.
Our company adheres to the enterprise spirit of 'green-oriented, ecologically supreme, grateful and win-win' and follows the production concept of 'safety guarantee and quality products'.
Since the establishment in our company has gained rich experience. Besides, our strong production capacity has been recognized by the industry.
Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment are sold well in the domestic market and they are also exported to Southeast Asia, Central Asia, Europe, and America as well as other countries and regions. They are well recognized in both domestic and foreign markets.
