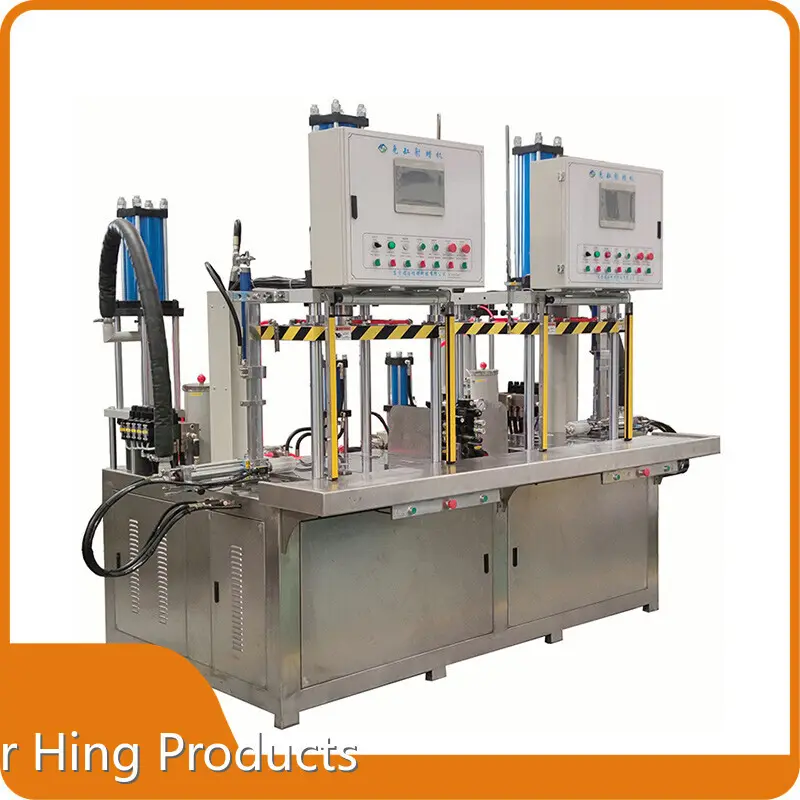

Wax Injection Molding Machine by Jar Hing
| Model No. | MYY20-2M-ZY |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |
| Description | Unit | Specification |
| Clamping force(max) | T | 16 |
| Mold usage space (depth× width× height) | mm | 620*600*600 |
| Lower table size | mm | 770×600 |
| Pressure plate size | mm | 770×600 |
| Maximum mold opening height | mm | 600 |
| Minimum height | mm | 70 |
| Move the workbench | mm | 600*600 |
| The nozzle hydraulically adjusts the stroke | mm | 0～250 |
| The nozzle adjusts the stroke up and down | mm | 0～300 |
| Table height | mm | 880 |
| Maximum amount of wax injection in a single stroke | L | 5 |
| Maximum injection pressure | MPa | 0～10 |
| System temperature control | ℃ | 50～65 |
| Wax box volume | L | 100*2 |
| Servo oil pump power | KW | 6.6KW*2 |
| Ice water is supplied externally | ℃ | ≤13 |
| Dimensions | mm | 3600x1800x2670 |
1. The plate is sheathed 4-column structure, stable and convenient Automatic mold mold assembly;
2. Pressure plate and the worktable are used four water cooling method, the fast cooling of wax;
3. The use of touch screen man-machine interface control, to ensure that the operation is simple, stable process parameters;
4. The equipment has dual mode, L pressure + two times H pressure filling wax injection mode, H pressure +L wax injection mode, H pressure +L pressure + two times H wax injection mode, automatic top function, automatic core pulling function;
5. The big layer of the three tubes, wax cooler and wax cylinder to meet the production of large molds.
6, The use of low-voltage electrical equipment world brand Schneider; hydraulic system using the original Taiwan, cylinder seal with the Japanese NOK seal.
7. With the function of secondary pressurization and wax supplement, the temperature of wax paste preparation is lower.
Company Advantages
· Jar Hing wax injection molding machine has experienced a well-designed process.
· The life cycle of this product has been greatly extended.
· Jar Hing Products Co., Ltd has been specialized in production of wax injection molding machine for many years.
Company Features
· Jar Hing Products Co., Ltd now has become a brand of its own in wax injection molding machine field.
· We boast a dedicated R&D team in our company. Leveraging their years of extensive expertise in the wax injection molding machine industry, they are capable of quickly develop new products per the latest market trend.
· Improving customers' satisfaction is always our objective. We believe that customer satisfaction is critical in helping our company develop into a more well-known enterprise. Call now!
Application of the Product
Our wax injection molding machine can be used in multiple scenarios.
Jar Hing Products has been engaged in the production of Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
