Wax Injection Molding Machine - - Jar Hing-1

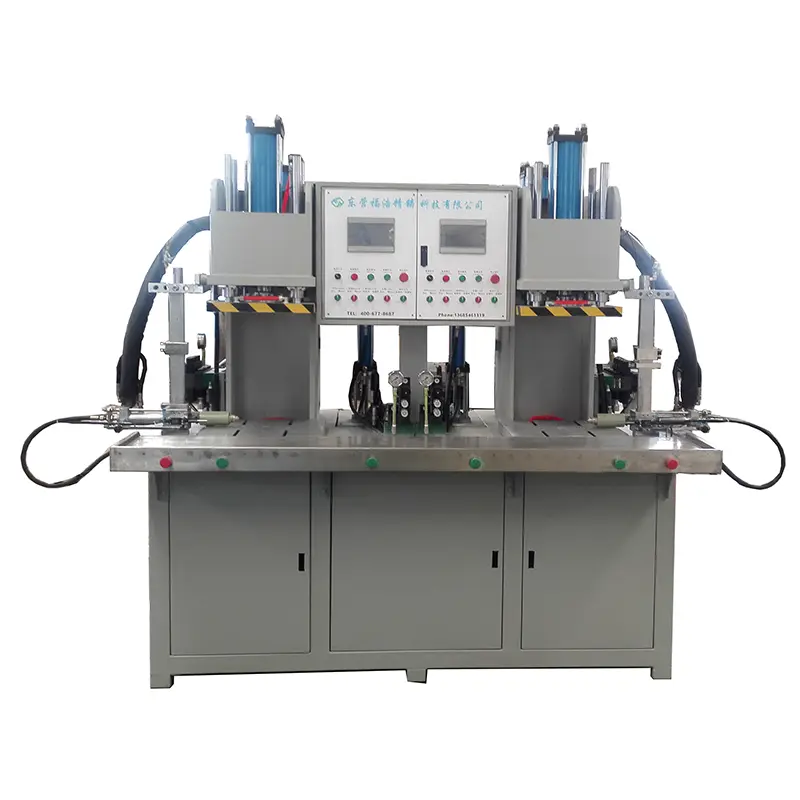

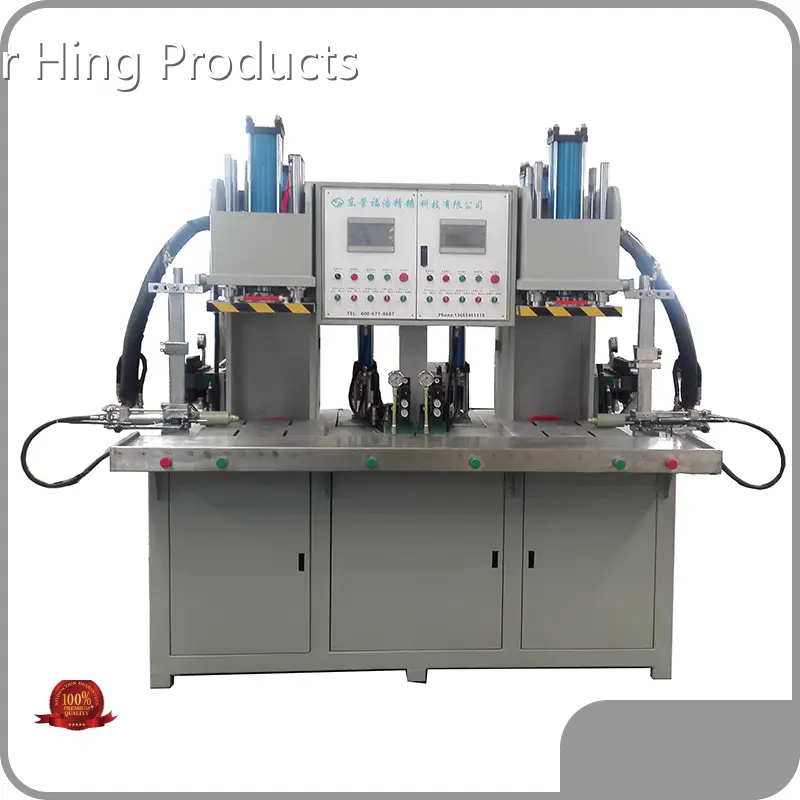

Product details of the wax injection molding machine
Product Overview
Jar Hing Products's machinery is made based on advanced production technology. They are self-adaptation, maintenance-free, and self-testing. They are of simple operation and great practicability. The raw materials Jar Hing wax injection molding machine uses are sourced from certified suppliers around the world. A strict quality guarantee system is established to guarantee the quality of this product. This product is more applicable with all these features.
Product Information
Compared with similar products, our wax injection molding machine's outstanding advantages are as follows.
|
Model No. |
MMY16-2KM |
|
Place Of Origin |
China |
|
Old And New |
New |
|
Video Factory Inspection |
Provided |
|
Mechanical Test Report |
Not Available |
|
Marketing Type |
Ordinary Product |
|
Core Component Warranty Period |
1 Year |
|
Core Components |
Plc, Motor, Pump |
|
Warranty Period |
1 Year |
|
Core Selling Point |
High Productivity |
|
Out-of-warranty Service |
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
|
Applicable Industry |
Other |
1. the maximum clamping force is 16t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 70mm;
4. pressing plate size 430 × 380mm;
5. base plate size 500 × 500mm;
6. auxiliary workbench 2250 × 375mm;
7. expansion range of nozzle: 0 ~ 200mm;
8. the lifting range of nozzle is 0 ~ 200mm;
9. the maximum usable volume of wax storage cylinder is 120L;
10. the maximum single wax injection volume is 5L;
11. wax injection pressure: 0.5 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;
18. four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection; It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production; Workbench auxiliary water cooling.
Company Information
In Jar Hing Products Co., Ltd, there are several production lines for mass production of wax injection molding machine. We have professional staff involved in all aspects of production. They understand our factory policy and our customers' needs. This ensures that our company can provide the best products to our customers. Jar Hing Products Co., Ltd firmly sticks to customer's needs to improve wax injection molding machine. Get quote!
Jar Hing Products's Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment have reasonable price and reliable quality. Your consultation and cooperation are sincerely welcome!
