Wax Injectors - - Jar Hing

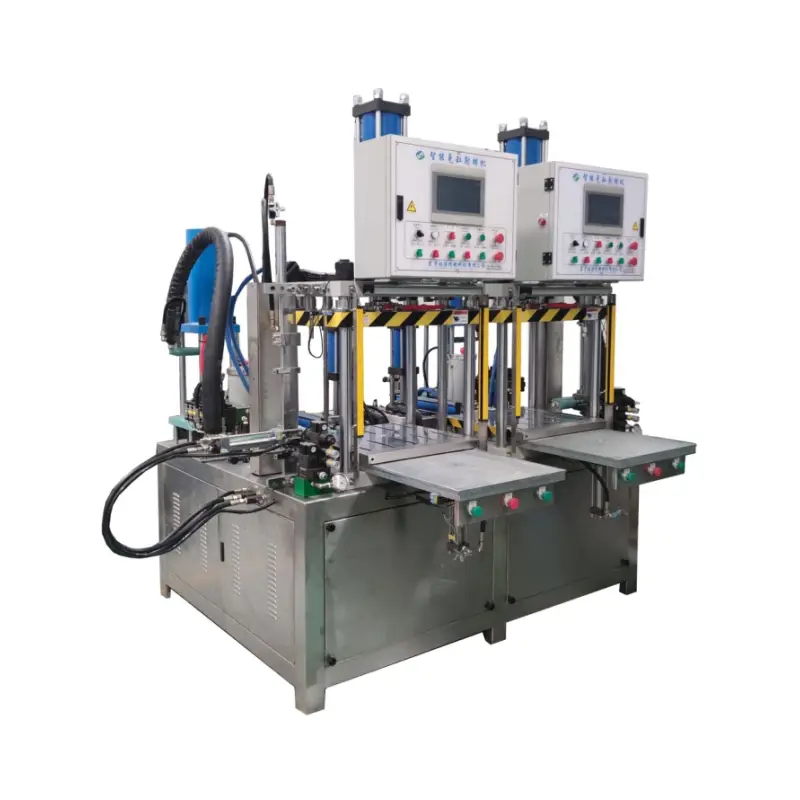

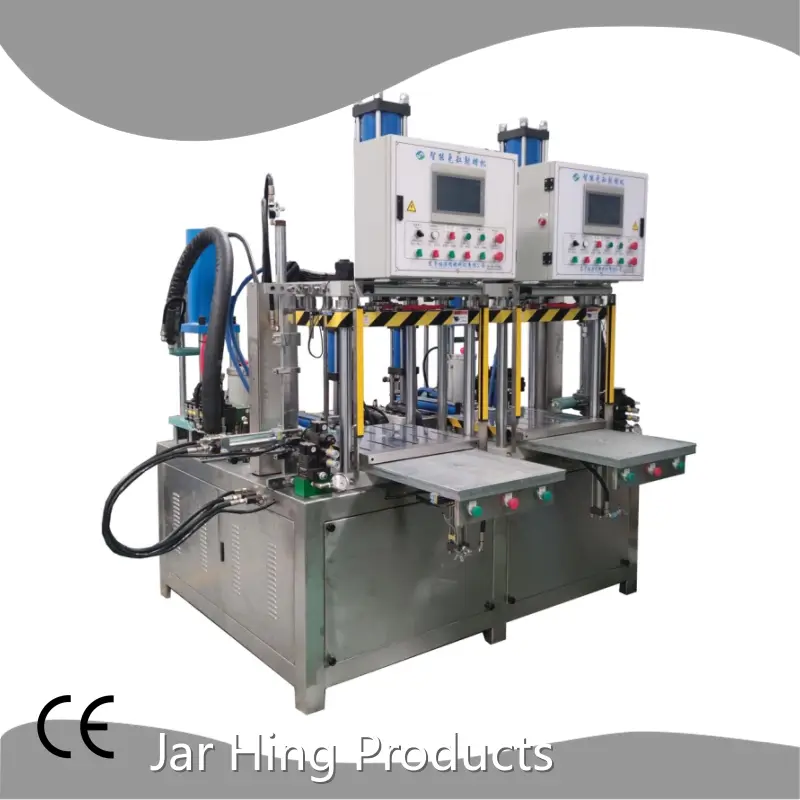

Product details of the wax injectors
Product Description
The offered Jar Hing wax injectors is produced by our dedicated workers by using the latest technology. The product is unbeatable in terms of performance, longevity, and practicality. The product is widely praised among users for its good characteristics and has a high market application potential.
| Model No. | MYY20-2M-HB |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. The maximum clamping force is 20t;
2. The maximum formwork opening height is 500mm;
3. The minimum clamping height is 70mm;4. Dimension of pressing plate and lower worktable 770 × 600mm;5. Die space 620×600×500mm;7. The expansion range of the nozzle is 0 ~ 200mm;8. The lifting range of nozzle is 0 ~ 200mm;9. The maximum use volume of wax storage cylinder is 100L;10. The maximum wax injection volume of a single shot is 5L;11. Wax injection pressure: 0 ~ 10MPa;
1. The maximum clamping force is 20t;
2. The maximum formwork opening height is 500mm;
3. The minimum clamping height is 70mm;4. Dimension of pressing plate and lower worktable 770 × 600mm;5. Die space 620×600×500mm;7. The expansion range of the nozzle is 0 ~ 200mm;8. The lifting range of nozzle is 0 ~ 200mm;9. The maximum use volume of wax storage cylinder is 100L;10. The maximum wax injection volume of a single shot is 5L;11. Wax injection pressure: 0 ~ 10MPa;
Company Advantage
• Jar Hing Products strives to improve after-sales service system. We exert ourselves to provide customers with excellent services, so as to pay back the love from the community.
• Jar Hing Products's mechanical equipment has reasonable and novel design, compact structure and stable performance. In addition to the easy operation, it is also convenient to be installed. With all the features, our product is well received by users.
• Jar Hing Products pays attention to product quality and technological innovation. We introduce advanced quality control equipment and have a group of professional and capable talents teams. All this greatly supports long-term development.
• With good location advantages, the open and easy traffic serves as the foundation for Jar Hing Products's development.
• Jar Hing Products was founded in For many years, we have been making progress and advancing with the times. We have constantly learned advanced manufacturing technology at home and abroad and have introduced professional production equipment. This enables us to maintain our leading position in the fierce competition.
We provide discounts for you. Please contact Jar Hing Products for more information!
Room 805, Huaxu Building, NO.95 Renmin South Road, Taicang City, Jiangsu Province, Suzhou, Jiangsu, China
