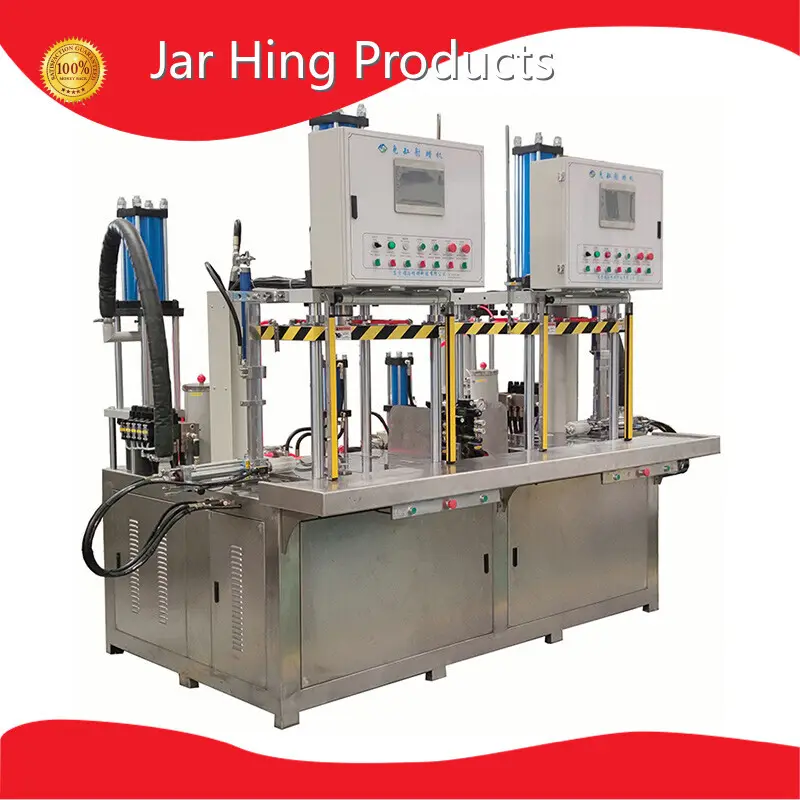

Product details of the wax moulding machine
Product Overview
The mechanical equipment produced by Jar Hing Products has complete and diversified types. And it is highly practical, with reliable quality and reasonable price. Jar Hing wax moulding machine is manufactured by the sophisticated equipment and the skillful workers. The quality of this product will be strictly inspected before loading. Jar Hing Products Co., Ltd has a strong work team with high intelligence and professional diligence.
Product Information
The specific details of wax moulding machine are presented below.
| Model No. | MYY20-2M-ZY |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |
| Description | Unit | Specification |
| Clamping force(max) | T | 16 |
| Mold usage space (depth× width× height) | mm | 620*600*600 |
| Lower table size | mm | 770×600 |
| Pressure plate size | mm | 770×600 |
| Maximum mold opening height | mm | 600 |
| Minimum height | mm | 70 |
| Move the workbench | mm | 600*600 |
| The nozzle hydraulically adjusts the stroke | mm | 0～250 |
| The nozzle adjusts the stroke up and down | mm | 0～300 |
| Table height | mm | 880 |
| Maximum amount of wax injection in a single stroke | L | 5 |
| Maximum injection pressure | MPa | 0～10 |
| System temperature control | ℃ | 50～65 |
| Wax box volume | L | 100*2 |
| Servo oil pump power | KW | 6.6KW*2 |
| Ice water is supplied externally | ℃ | ≤13 |
| Dimensions | mm | 3600x1800x2670 |
1. The plate is sheathed 4-column structure, stable and convenient Automatic mold mold assembly;
2. Pressure plate and the worktable are used four water cooling method, the fast cooling of wax;
3. The use of touch screen man-machine interface control, to ensure that the operation is simple, stable process parameters;
4. The equipment has dual mode, L pressure + two times H pressure filling wax injection mode, H pressure +L wax injection mode, H pressure +L pressure + two times H wax injection mode, automatic top function, automatic core pulling function;
5. The big layer of the three tubes, wax cooler and wax cylinder to meet the production of large molds.
6, The use of low-voltage electrical equipment world brand Schneider; hydraulic system using the original Taiwan, cylinder seal with the Japanese NOK seal.
7. With the function of secondary pressurization and wax supplement, the temperature of wax paste preparation is lower.
Company Information
Jar Hing Products Co., Ltd is globally competitive in the industry of wax moulding machine. Excellent overall performance of wax moulding machine keeps it the best operation situation for the long term. We aim to become a global leading company. We are confident that we can provide the ideal elements within our value chain to attain the maximum benefit for each individual customer.
Welcome to visit Jar Hing Products! If you have any questions or suggestions on Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment, please contact us directly. We will serve you wholeheartedly!
