Wax Processing Equipment - - Jar Hing

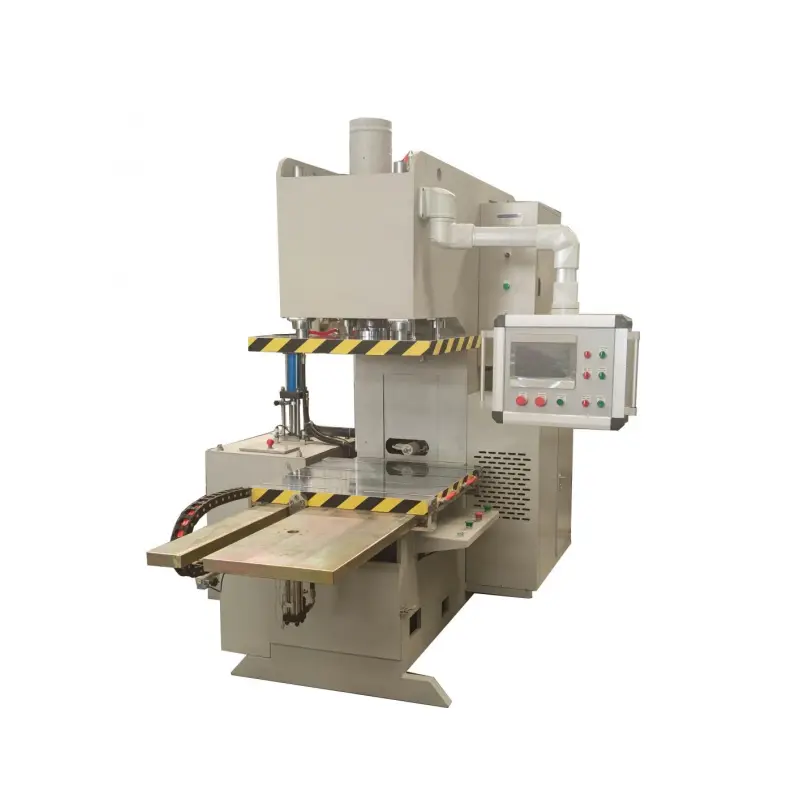

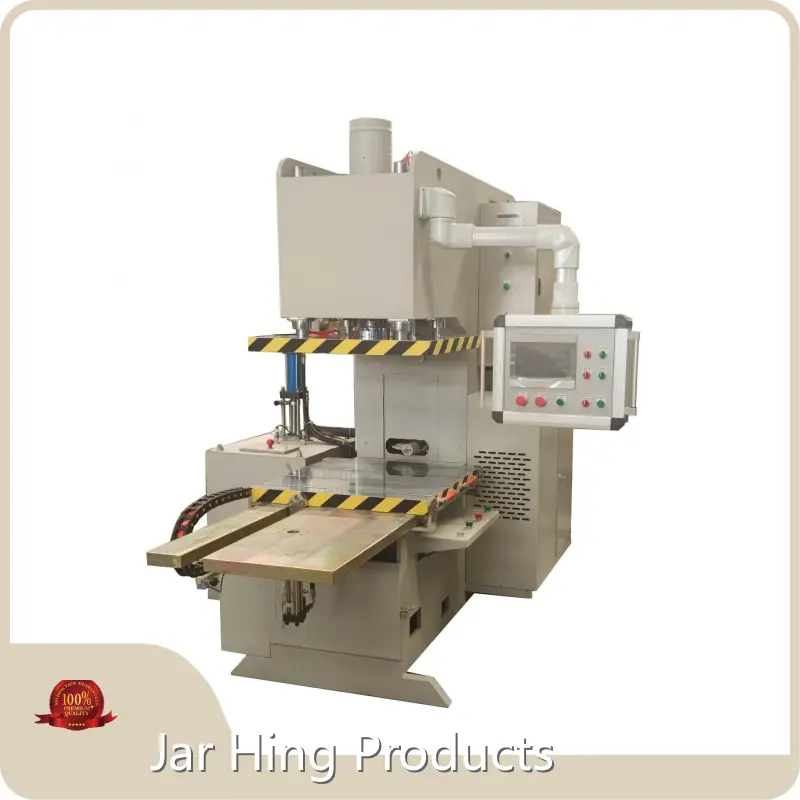

Product details of the wax processing equipment
Product Introduction
Jar Hing is remembered deeply mainly because its outstanding feature of wax processing equipment. The product only has superior quality but also has stable performance that customers can count on. The product has gained the popularity among the customers and is bound to be widely accepted.
| Model No. | MMY20-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 590mm;
3. the minimum clamping height is 90mm;
4. lower workbench size 800 × 800mm;
5. upper pressing plate size 600 × 600mm;
6. the moving stroke of the lower workbench is 800mm;
7. expansion range of nozzle: 0 ~ 300mm;
8. the lifting range of nozzle is 0 ~ 300mm;
9. the maximum usable volume of wax storage cylinder is 120L;
10. the maximum wax injection per shot is 7L;
11. wax injection pressure: 0.5 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. fast running oil cylinder shall be adopted for die cylinder;
17. equipped with 0.5T mold lifting device;
18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;
20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;
21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.
22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Advantage
• In recent years, our company has selected outstanding talents from many well-known institutions at home and abroad. After training, they became a highly educated team of high quality. Based on that, our company could achieve long-term development.
• Jar Hing Products was established in We closely follow the development trend as well as adhere to sustainable development in the machinery industry. We are now a professional and powerful manufacturer of machinery.
• Jar Hing Products's location enjoys a comprehensive traffic network, which is good for the distribution of products.
• Jar Hing Products always put customers first and provides them with sincere and quality services.
• Jar Hing Products mainly runs the business of export products. The products are sold to many foreign countries and regions.
Jar Hing Products has sufficient stock of Wax Injection Machine,Shell Moulding Machine,De-waxing and Wax Treatment Machine,Melting and Calcining Equipment,Post-processing Equipment,Low-temperature Wax Equipment,Auxiliary Equipment. We provide discounts for large quantity. We look forward to your consultation and contact!
