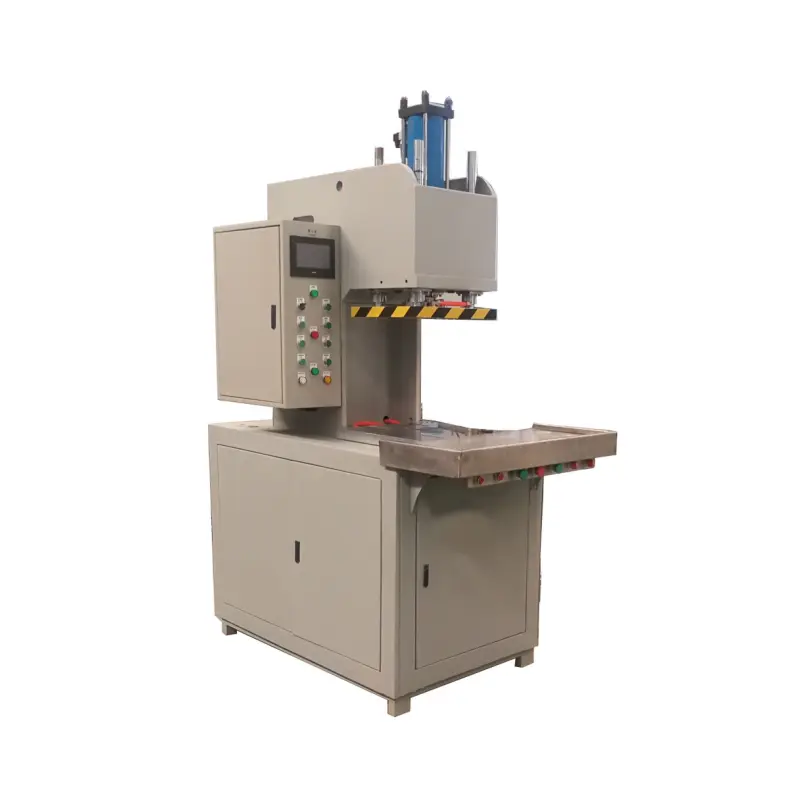

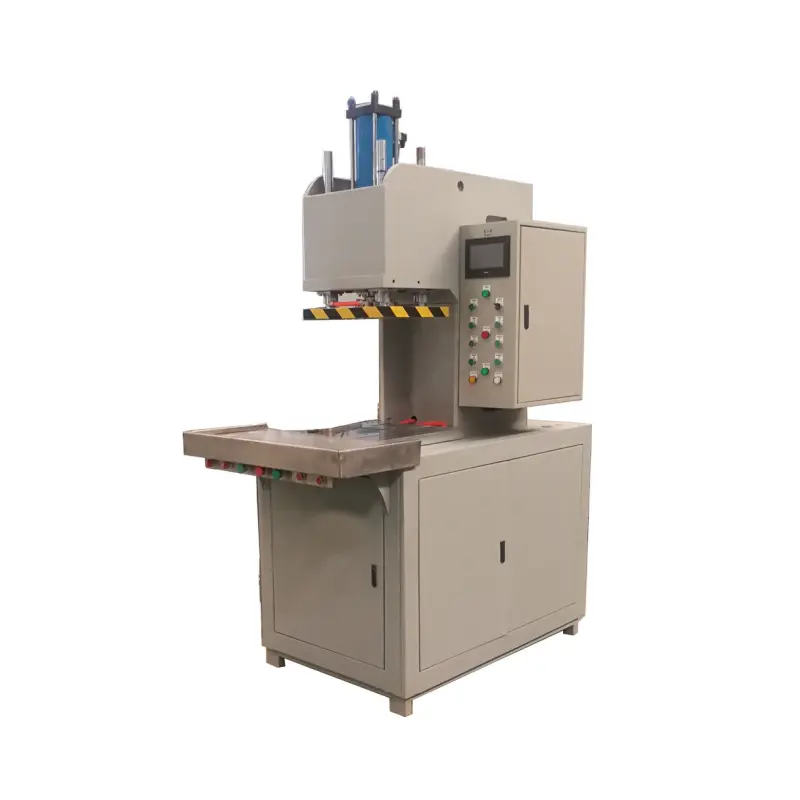

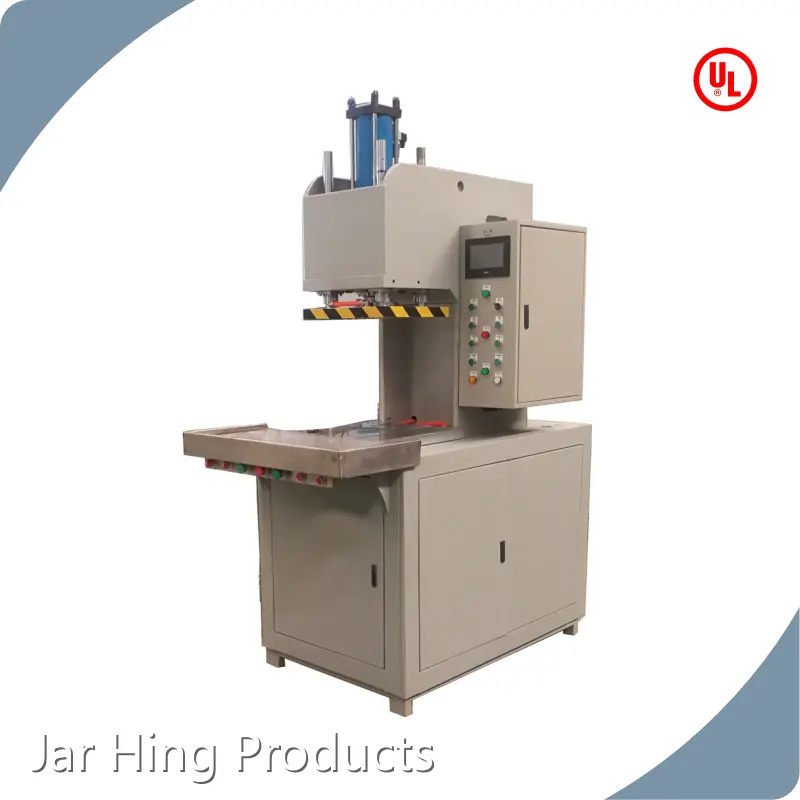

Vacuum Wax Injection Machine by Jar Hing
Company Advantages
· Jar Hing vacuum wax injection machine is manufactured under the international guidelines.
· Our strict quality management system greatly ensures the quality of this product.
· Jar Hing Products Co., Ltd maintains strategic alliance relationships with many companies.
| Model No. | MTCSX-20-Z |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
Company Features
· Jar Hing Products Co., Ltd has been the preferred choice in the Chinese market. We stand out for providing high-quality vacuum wax injection machine.
· The factory has newly brought in a set of advanced manufacturing facilities. These facilities enable us to guarantee stable product output with high quality for clients. Our factory is blessed with a full line of cutting-edge production facilities and testing equipment. They are extremely useful in enhancing productivity and product quality, which gives us more confidence in providing clients quality products.
· We pay close attention to environmental protection. We aim to improve energy and water efficiency, reduce the use of natural resources and minimize production waste.
Application of the Product
Our vacuum wax injection machine has a wide range of applications and can be used in a variety of situations and scenarios.
Jar Hing Products is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.
Room 805, Huaxu Building, NO.95 Renmin South Road, Taicang City, Jiangsu Province, Suzhou, Jiangsu, China
