Wax Injection Machine for Sale by Jar Hing

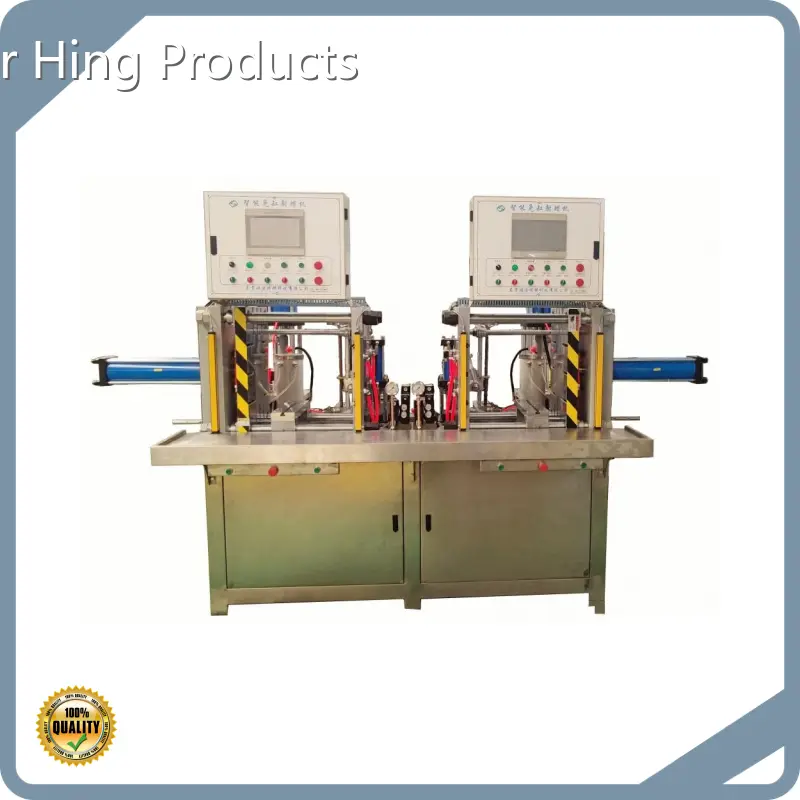

1. both stations of the wax ejector are horizontal to adapt to the production of the die head, and the maximum clamping force is 16t;
2. the maximum mold opening height is 545mm;
3. the minimum clamping height is 120mm;
4. pressing plate size 690 × 480mm;
5. die space 480 × four hundred and eighty-five × 545mm;
6. auxiliary workbench 2260 × 380mm;
7. expansion range of nozzle: 0 ~ 200mm;
8. the lifting range of nozzle is 0 ~ 200mm;
9. the maximum usable volume of wax storage cylinder is 100L;
10. the maximum single wax injection volume is 5L;
11. wax injection pressure: 0 ~ 10MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of enlarged 10 inch Taiwan nylon, and the PLC is made of Xinjie;
15. temperature control mode touch screen +plc temperature control module;
16. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;
18. the four column positioning pressure template is controlled by PLC touch screen and has the functions of high and low pressure and secondary high pressure wax injection; Workbench auxiliary water cooling.
21. stainless steel frame;

1. the maximum clamping force is 20t;2. the maximum mold opening height is 590mm;3. the minimum clamping height is 90mm;4. lower workbench size 800 × 800mm;5. upper pressing plate size 600 × 600mm;6. the moving stroke of the lower workbench is 800mm;7. expansion range of nozzle: 0 ~ 300mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection per shot is 7L;11. wax injection pressure: 0.5 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. French Schneider shall be adopted for contactors and relays;14. the touch screen is made of Taiwan vinylon;15. temperature control mode touch screen +plc temperature control module;16. fast running oil cylinder shall be adopted for die cylinder;17. equipped with 0.5T mold lifting device;18. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.19. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;20. high and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;21. it has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.22. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
