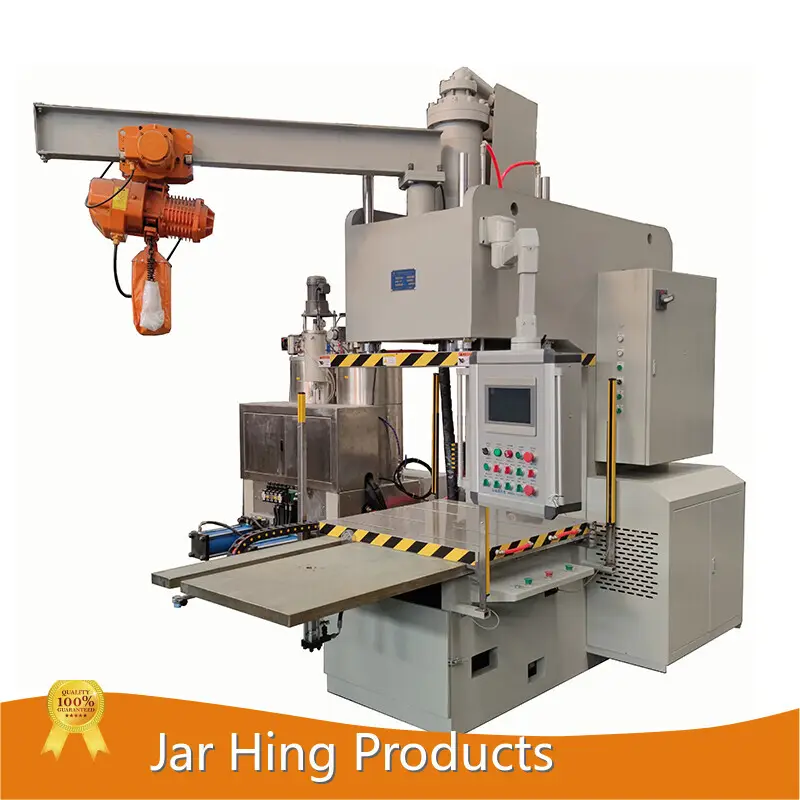

Wax Injection Machine for Sale - - Jar Hing

1. the maximum clamping force is 60t;2. the maximum mold opening height is 800mm;3. the minimum clamping height is 90mm;4. lower workbench size 1000 × 1000mm;5. upper pressing plate size 1000 × 1000mm;6. the moving stroke of the lower workbench is 1000mm;7. expansion range of nozzle: 0 ~ 400mm;8. the lifting range of nozzle is 0 ~ 300mm;9. the maximum usable volume of wax storage cylinder is 120L;10. the maximum wax injection amount per time is 20L;11. wax injection pressure: 0 ~ 10MPa;12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;13. both fast and slow mode closing and injection pressure and injection flow are digitally controlled.14. it has the linkage function of manipulator mold taking.15. all processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.16. the temperature control adopts the independent heating and cooling type of insulation barrel, which avoids the previous equipment valve cracking and the carbon deposition of heat transfer oil.17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;18. temperature parameters include: wax storage barrel temperature, preparation temperature and wax injection temperature.19. the quick running oil cylinder is adopted for the die cylinder;20. equipped with 1t mold lifting device;
