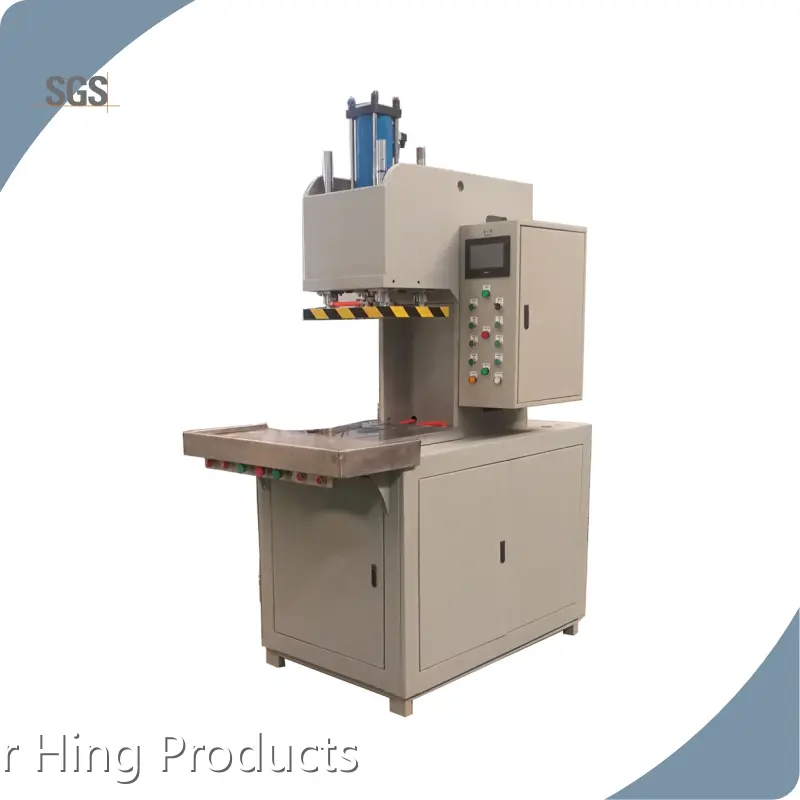

Product details of the wax injection machine for sale
Quick Detail
Advanced production technology is adopted to the production of Jar Hing Products's mechanical equipment. So our product is provided with features of self-adaptation, maintenance-free, self-testing and so forth. Moreover, the mechanical equipment is of easy operation and strong practicability. Jar Hing wax injection machine for sale has audacious and unique design style. Its functionality has been technically improved by a professional team. The product has gained much acceptance and popularity in the field.
Product Description
We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.
| Model No. | MTCSX-20-Z |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
| Applicable Industry | Other |
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
1. the maximum clamping force is 20t;
2. the maximum mold opening height is 500mm;
3. the minimum clamping height is 150mm;
4. pressing plate size 400 × 500mm;
5. lower worktable 800 × 950mm;
6. the expansion range of the nozzle is 0 ~ 200mm;
7. the lifting range of nozzle is 0 ~ 200mm;
8. the volume of the material storage cylinder is 16L;
9. the maximum single wax injection volume is 0.75L;
10. wax injection pressure: 0.4 ~ 6.3MPa;
11. temperature control range of formwork: 15 ~ 60 ℃;
12. the equipment adopts C-type structure design, which is practical and saves space;
13. the wax injection cylinder automatically pulls wax from the storage cylinder;
14. electrical system: it is composed of programmable controller (PLC), temperature controller, frequency converter, contactor, relay, button, indicator light, etc. The process parameters are adjustable, with Automatic and manual operation functions.
