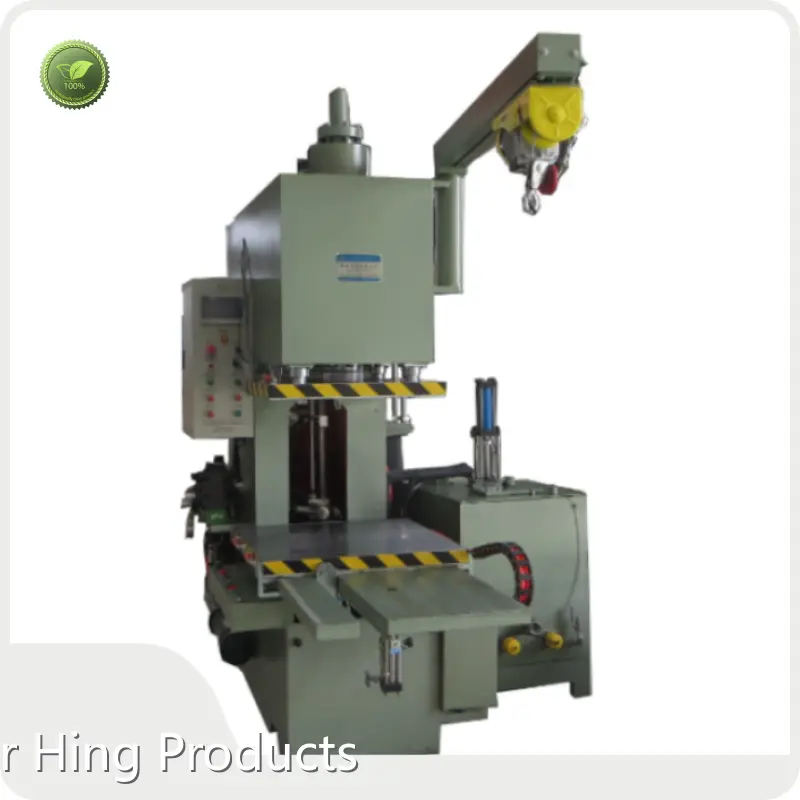

Wax Injection Machine - - Jar Hing-1
Company Advantages
· The production technique Jar Hing wax injection machine adopts is up to and exceed the industrial standard.
· Its quality is monitored by the strict quality inspection team and thus can be used for a long time.
· By means of perfect system and advanced management, Jar Hing Products Co., Ltd will ensure all production completed on schedule.
| Model No. | MMY20-1k |
| Place Of Origin | China |
| Old And New | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Not Available |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | High Productivity |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Where To Provide Local Services | None |
| Showroom Location | None |
| Applicable Industry | Other |
| Item | Unit | MYY20-1KM | MYY50-1KM |
| Maximum clamping force | T | 20 | 50 |
| Maximum opening height | mm | 550 | 550 |
| Minimum mode height | mm | 100 | 100 |
| Upper plate size | mm | 600（L）×600（W） | 600（W）×600（W） |
| Lower worktable moving stroke | mm | 700 | 700 |
| Telescopic range of ejection nozzle | mm | 0～300 | 0～300 |
| Lifting range of ejection nozzle | mm | 0～300 | 0～300 |
| Ground height of work table | mm | 895 | 895 |
| Rated hanging weight of cantilever crane | Kg | 500 | 500 |
| Maximum use volume of wax storage cylinder | L | 120 | 120 |
| Single maximum paraffin amount | L | 7 | 12 |
| Wax injection pressure | MPa | 1.0～10 | 1.0～10 |
| Pressure holding time | S | 0～9999 | 0～9999 |
| Wax injection time | S | 0～9999 | 0～9999 |
| Installed power | KW | 10 | 10 |
| Temperature control mode | Touch screen +PLC temperature control module | Touch screen +PLC temperature control module | |
| Temperature control of wax storage bucket | ℃ | 75～90 | 75～90 |
| Isothermal temperature control | ℃ | 50～65 | 50～65 |
| Equipment dimensions | mm | 2520*1760*3000 | 2520*1760*3000 |
| Self weight of equipment | T | 3.0 | 3.9 |
1. Wax injection pressure: 0.5 ~ 10MPa;2. All oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;3. French Schneider shall be adopted for contactors and relays;4. The touch screen is made of Taiwan vinylon;5. Temperature control mode touch screen +plc temperature control module;6. Fast running oil cylinder shall be adopted for die cylinder;7. Equipped with 0.5T mold lifting device;8. The temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.9. The hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past; At the same time, it has the function of hydraulic oil overtemperature alarm;10. High and low pressure wax injection, sliding plate can be removed; It has the function of one machine and two functions, which can shoot the die head quickly and large wax parts;11. It has the functions of high and low pressure and secondary high pressure wax injection; It has Automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production.12. All processed parts of the pressing plate, worktable and nozzle advance and retreat lifting parts of the wax injection machine shall be chrome plated.
Company Features
· Jar Hing Products Co., Ltd is a company that is regarded as highly reliable among customers for our high-quality wax injection machine.
· We are equipped with a professional customer service team. Their expertise and professionalism in the wax injection machine industry ensure the highest efficiency and level in the process they serve our clients. We have built up an in-house team of professional designers. Throughout the design stage, they are able to bring innovative design ideas to our customers and support them all the time. We have brought together a team of experienced designers. With their years of experience in the field of wax injection machine, they are able to help the company design products with functionality, performance, as well as visual appeal.
· Jar Hing Products Co., Ltd aims to create a famous brand with high efficiency, high quality and excellent service. Get info!
Product Details
More detailed information about wax injection machine will be shown below for you.
Enterprise Advantages
Jar Hing Products's outstanding talents team has great ambitions and common ideals, which is good for our company to develop rapidly.
Jar Hing Products carries out clear management on after-sales service based on the application of the online information service platform. This enables us to improve efficiency and quality and every customer can enjoy excellent after-sales services.
Jar Hing Products holds the enterprise spirit of 'integrity, pragmatism, breakthrough, and tenacity'. During the development, we focus on sincere service and maintain a pragmatic way. We also seek breakthrough and proactively assume social responsibility. All difficulties are overcame based on tenacity.
Founded in Jar Hing Products has always been insisting on the brand development for years. Now we become a leader in the industry with relatively high brand recognition.
Jar Hing Products continues to innovate the business mode. We combine online channels with offline channels and expand sales channel, which enables us to build a nationwide marketing network.
