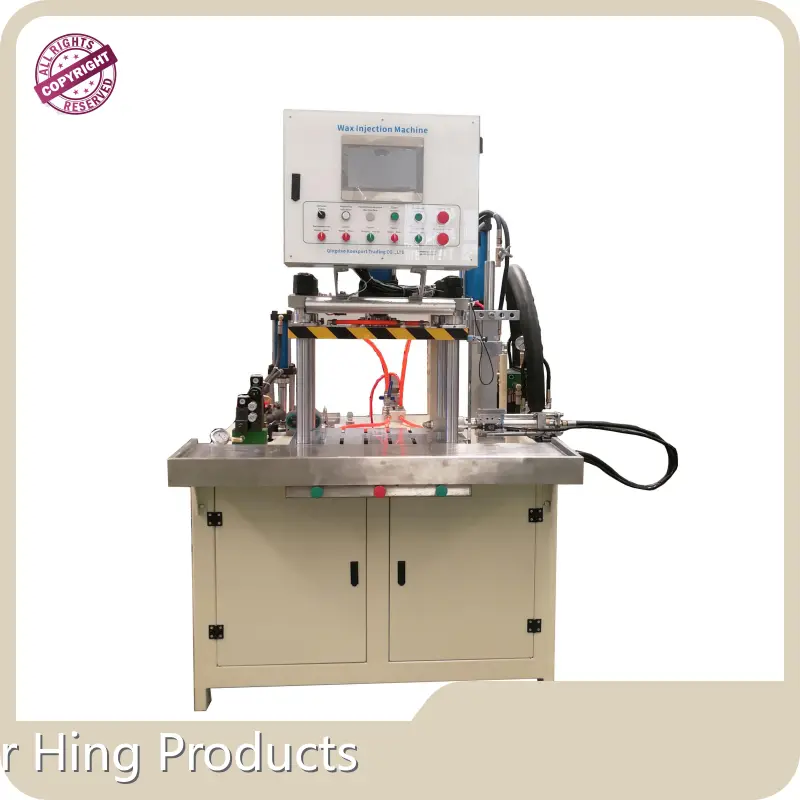

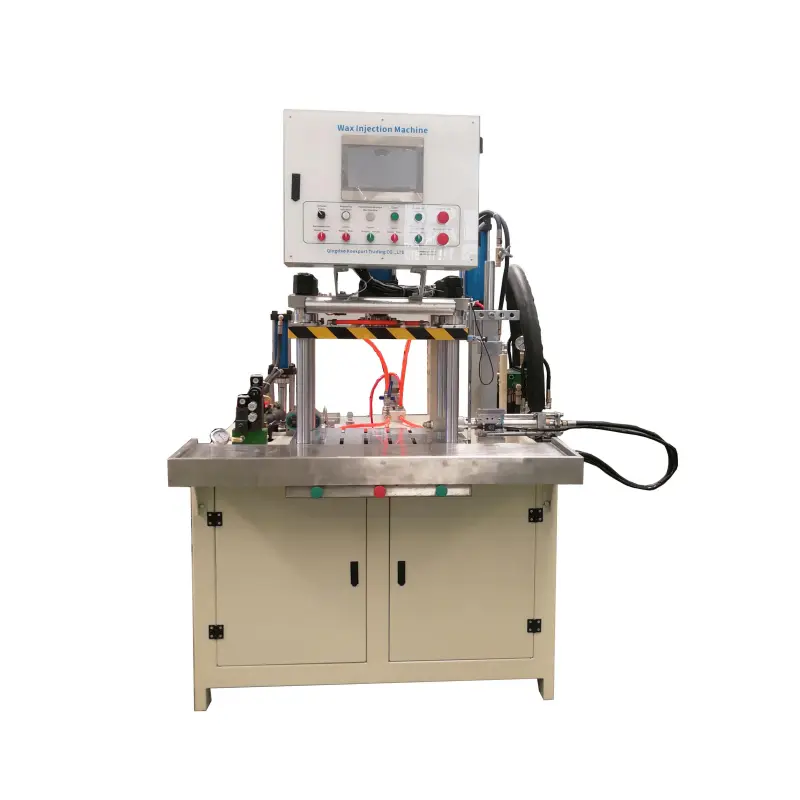

Wax Injection Machine - - Jar Hing
Product details of the wax injection machine
Product Information
The production of Jar Hing wax injection machine adopts excellent quality raw materials that are obtained from the licensed vendors of the market. The quality of the product is under the guarantee of international certificates. Our warranty time for wax injection machine is as long as many years.
|
Model No. |
MYY10-1ZM |
|
Place Of Origin |
China |
|
Old And New |
New |
|
Video Factory Inspection |
Provided |
|
Mechanical Test Report |
Not Available |
|
Marketing Type |
Ordinary Product |
|
Core Component Warranty Period |
1 Year |
|
Core Components |
Plc, Motor, Pump |
|
Warranty Period |
1 Year |
|
Core Selling Point |
High Productivity |
|
Out-of-warranty Service |
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) |
None |
|
Showroom Location (in Which Countries Are There Sample Rooms Overseas) |
None |
|
Applicable Industry |
Other |
1. the maximum clamping force is 10t;
2. overall dimension 1865*1670*2100mm;
3. the minimum clamping height is 70mm;
4. equipment weight 1225kg;
5. die space 500 × four hundred and sixty × 385mm;
6. auxiliary workbench 1265 × 375mm;
7. expansion range of nozzle: 0 ~ 200mm;
8. the lifting range of nozzle is 0 ~ 200mm;
9. equipment power: 9.2kw;
10. single maximum wax injection quantity 3L;
11. wax injection pressure: 0 ～ 5MPa;
12. all oil cylinders, wax injection cylinders and wax replenishment cylinders shall adopt Japanese NOK sealing rings;
13. French Schneider shall be adopted for contactors and relays;
14. the touch screen is made of Taiwan vinylon;
15. temperature control mode touch screen +plc temperature control module;
16. the temperature control of wax injection and preparation adopts the independent heating and cooling type of insulation barrel, which avoids the valve sticking of previous equipment.
17. the hydraulic oil tank is made of stainless steel; The hydraulic oil is directly cooled by thick wall copper pipe, which avoids the potential safety hazard of hydraulic oil cooler freezing and water inflow in the past;
18. four column positioning pressure template, controlled by PLC touch screen, Automatic adjustment of nozzle can be used as two sets of molds, and it has the functions of high and low pressure and secondary high pressure wax injection; It has automatic core pulling function and automatic top mold function to meet the requirements of automatic mold production; Workbench auxiliary water cooling.
